VBQA1806 N-Channel 80V MOSFET

VBQA1806 Description

VBQA1806 www.VBsemi.com N-Channel 80 V (D-S) MOSFET PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 0.0048 at VGS = 10 V ID (A) a 60 Qg (Typ.) .

VBQA1806 Features

* Trench power MOSFET

VBQA1806 Applications

* Primary side switching D
* Synchronous rectification
* DC/AC inverters Top View DFN5X6 Bottom View PIN1 Top View 1 8 2 7 3 6 4 5 G S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) Parameter Symbol Limit Unit Drain-Source

📥 Download Datasheet

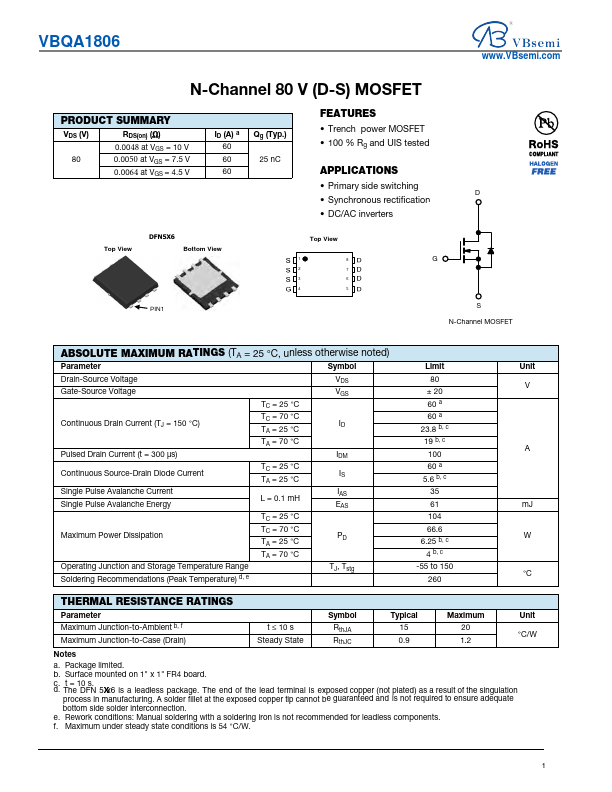

Preview of VBQA1806 PDF

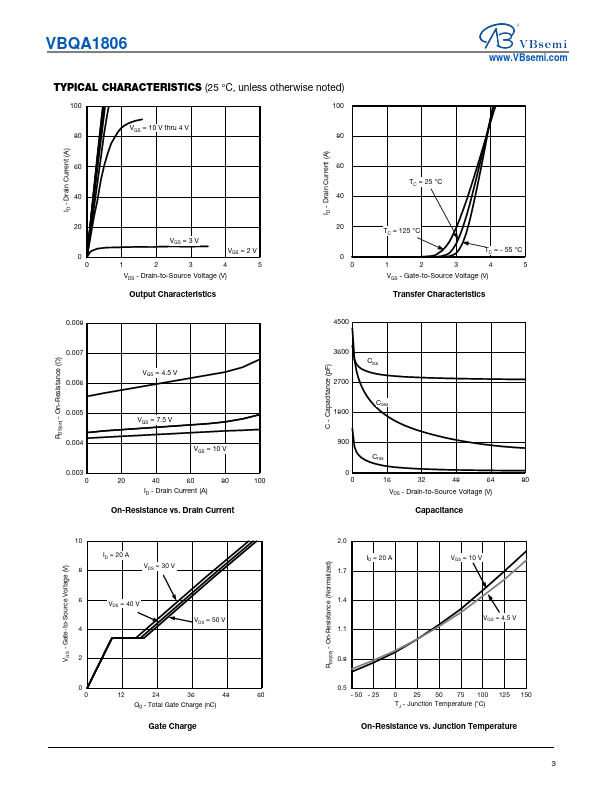

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VBQA1806
Manufacturer
VBsemi
File Size
279.42 KB
Datasheet
VBQA1806-VBsemi.pdf
Description
N-Channel 80V MOSFET

📁 Related Datasheet

📌 All Tags

N-Channel 80V MOSFET VBsemi
VBsemi VBQA1806-like datasheet
