VBI2338 P-Channel MOSFET

VBI2338 Description

VBI2338 P-Channel 30-V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) - 30 0.050 at VGS = - 10 V 0.056 at VGS = - 4.5 V ID (.

VBI2338 Features

* Halogen-free According to IEC 61249-2-21 Definition
* TrenchFET® Power MOSFET

VBI2338 Applications

* Load Switch
* Battery Switch S G GD S D P-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS TC = 25 °C Continuous Drain Current (TJ = 150 °C) TC = 70 °C TA = 25 °C ID Pulsed Dra

📥 Download Datasheet

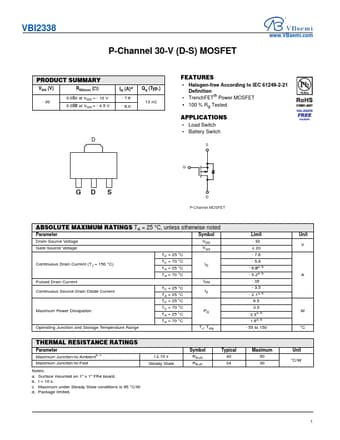

Preview of VBI2338 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VBI2338
Manufacturer
VBsemi
File Size
237.19 KB
Datasheet
VBI2338-VBsemi.pdf
Description
P-Channel MOSFET
