TPC8207 Dual N-Channel 20V MOSFET

VBsemi

Description

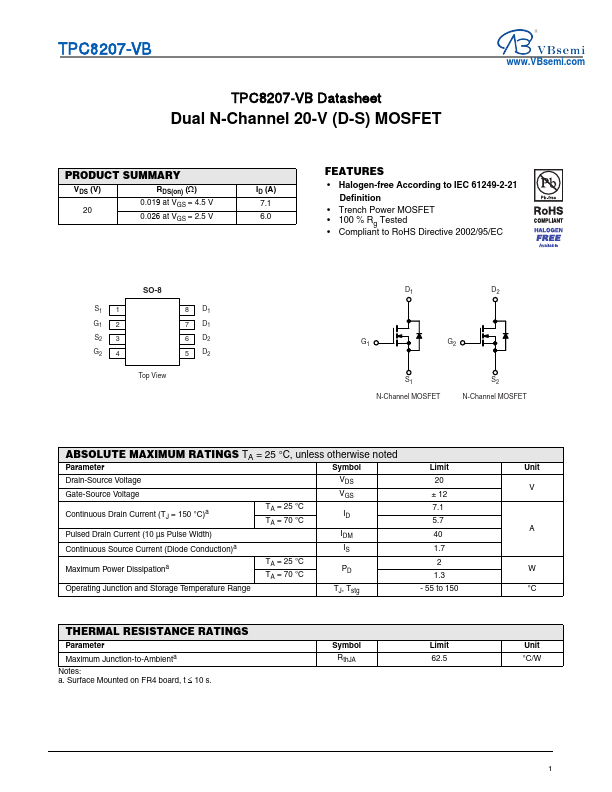

TPC8207-VB TPC8207-VB Datasheet Dual N-Channel 20-V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 20 0.019 at VGS = 4.5 V 0.0.

📥 Download Datasheet

TPC8207 Datasheet Preview — Preview of TPC8207 PDF

Datasheet Specifications

Part number: TPC8207
Manufacturer: VBsemi
File Size: 254.51 KB
Datasheet: TPC8207-VBsemi.pdf
Description: Dual N-Channel 20V MOSFET

Features

* Halogen-free According to IEC 61249-2-21 Definition
* Trench Power MOSFET
* 100 % Rg Tested
* Compliant to RoHS Directive 2002/95/EC S1 1 G1 2 S2 3 G2 4 SO-8 Top View 8 D1 7 D1 6 D2 5 D2 D1 D2 G1 G2 S1 N-Channel MOSFET S2 N-Channel MOSFET ABSOLUTE MAXIMUM
