TK15A50D - N-Channel 650V Power MOSFET

VBsemi

The TK15A50D by VBsemi is a N-Channel 650V Power MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

TK15A50D N-Channel 650V Power MOSFET by VBsemi - Datasheet Preview — Official preview page of the TK15A50D N-Channel 650V Power MOSFET datasheet (VBsemi).

Datasheet Details

Part number	TK15A50D
Manufacturer	VBsemi
File Size	372.77 KB
Description	N-Channel 650V Power MOSFET
Datasheet	TK15A50D-VBsemi.pdf

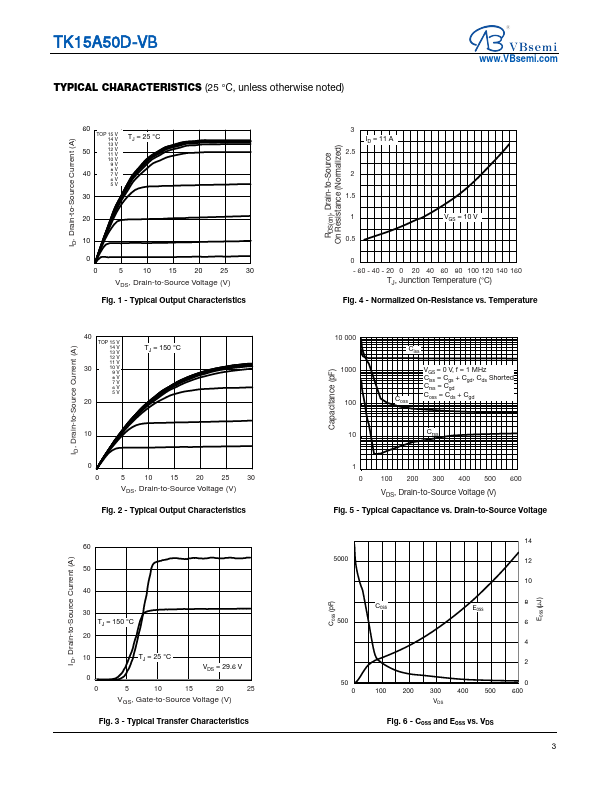

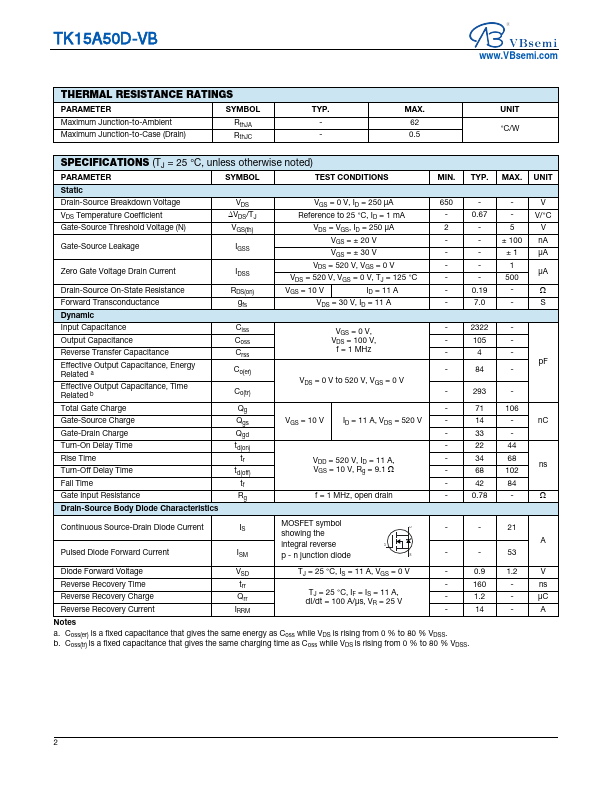

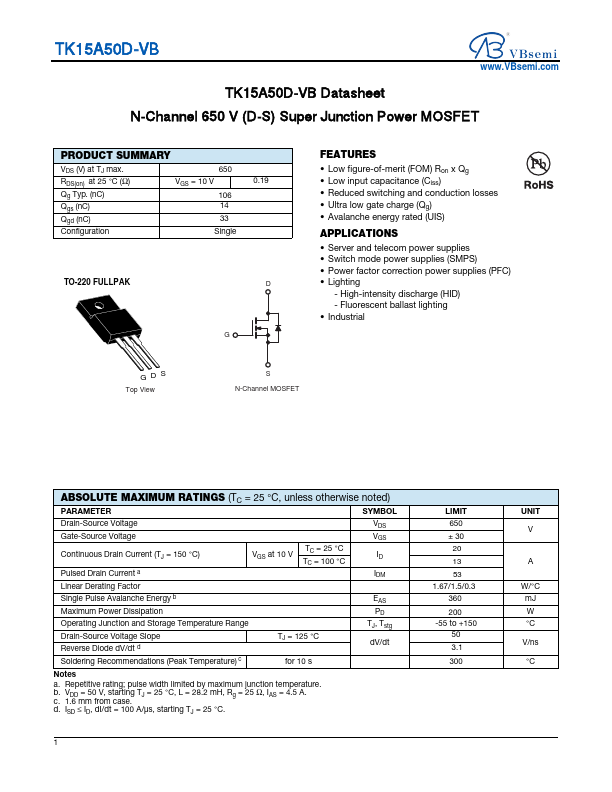

Additional preview pages of the TK15A50D datasheet.

TK15A50D Product details

Features

Low figure-of-merit (FOM) Ron x Qg.
Low input capacitance (Ciss).
Reduced switching and conduction losses.
Ultra low gate charge (Qg).
Avalanche energy rated (UIS).
