SVD75N08T - N-Channel 80V MOSFET

SVD75N08T Description

SVD75N08T-VB SVD75N08T-VB Datasheet N-Channel 80 V (D-S) MOSFET PRODUCT SUMMARY VDS RDS(on) VGS = 10 V RDS(on) VGS = 4.5 V ID Configuration 80 V .

SVD75N08T Features

* Trench Power MOSFET

SVD75N08T Applications

* Primary Side Switching
* Synchronous Rectification
* DC/AC Inverters
* LED Backlighting www. VBsemi. com D G Top View GD S ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) Parameter Symbol Drain-Source Voltage Gate-Source Voltage Continuous Drain

📥 Download Datasheet

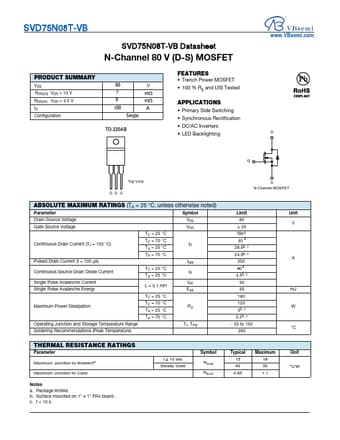

Preview of SVD75N08T PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SVD75N08T
Manufacturer
VBsemi
File Size
385.68 KB
Datasheet
SVD75N08T-VBsemi.pdf
Description
N-Channel 80V MOSFET
