STW12NK95Z N-Channel 900V Power MOSFET

STW12NK95Z Description

STW12NK95Z-VB www.VBsemi.com STW12NK95Z-VB Datasheet N-Channel 900 V (D-S) Super Junction Power MOSFET PRODUCT SUMMARY VDS (V) at TJ max.RDS(on) .

STW12NK95Z Features

* Low figure-of-merit (FOM) Ron x Qg
* Low input capacitance (Ciss)
* Reduced switching and conduction losses
* Ultra low gate charge (Qg)

STW12NK95Z Applications

* Server and telecom power supplies
* Switch mode power supplies (SMPS)
* Power factor correction power supplies (PFC)
* Lighting - High-intensity discharge (HID) - Fluorescent ballast lighting D TO-247AC S D G Top View G S N-Channel MOSFET ABSOLUTE MAXIMUM RATING

📥 Download Datasheet

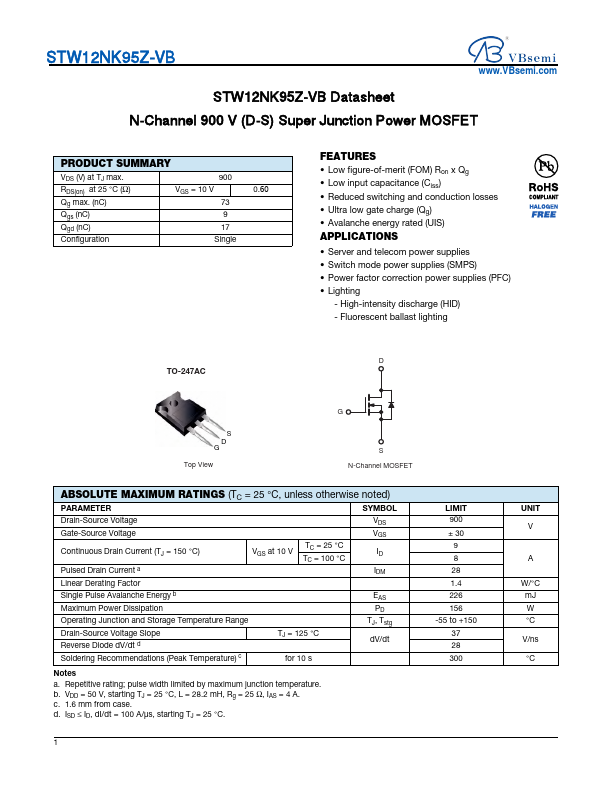

Preview of STW12NK95Z PDF

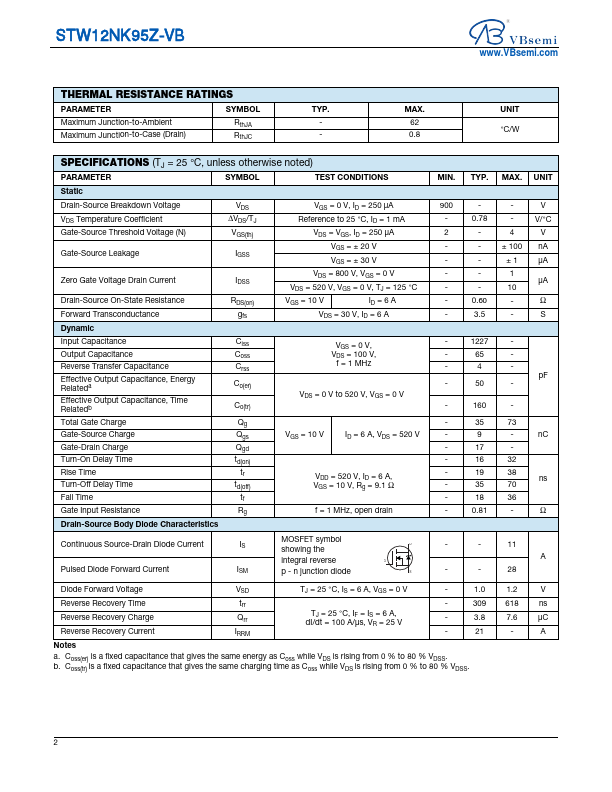

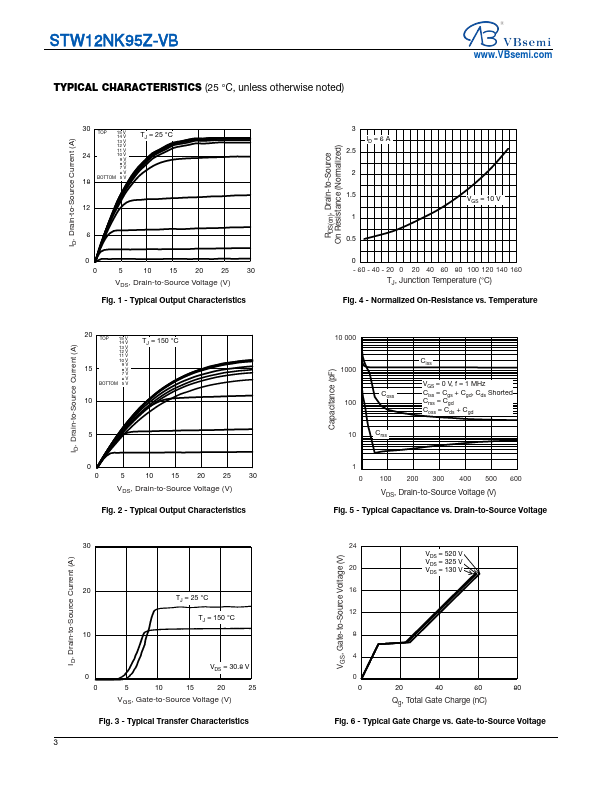

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STW12NK95Z
Manufacturer
VBsemi
File Size
283.25 KB
Datasheet
STW12NK95Z-VBsemi.pdf
Description
N-Channel 900V Power MOSFET
