STP85NF55L N-Channel 60V MOSFET

STP85NF55L Description

STP85NF55L-VB STP85NF55L-VB Datasheet N-Channel 60 V (D-S) MOSFET PRODUCT SUMMARY VDS RDS(on) VGS = 10 V ID Configuration 60 V 5 m 120 A Sin.

STP85NF55L Features

* 175 °C Junction Temperature
* TrenchFET® Power MOSFET
* Material categorization: TO-220AB D www. VBsemi. com G GDS S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TC = 25 °C, unless otherwise noted) Parameter Symbol Limit Unit Gate-Source Voltage VGS ± 20 V Conti

📥 Download Datasheet

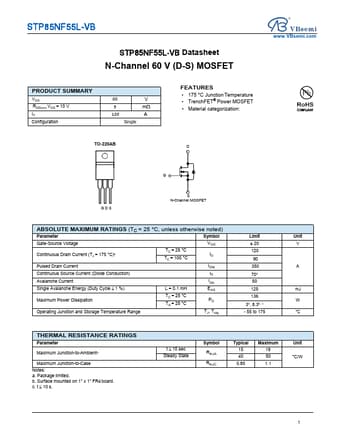

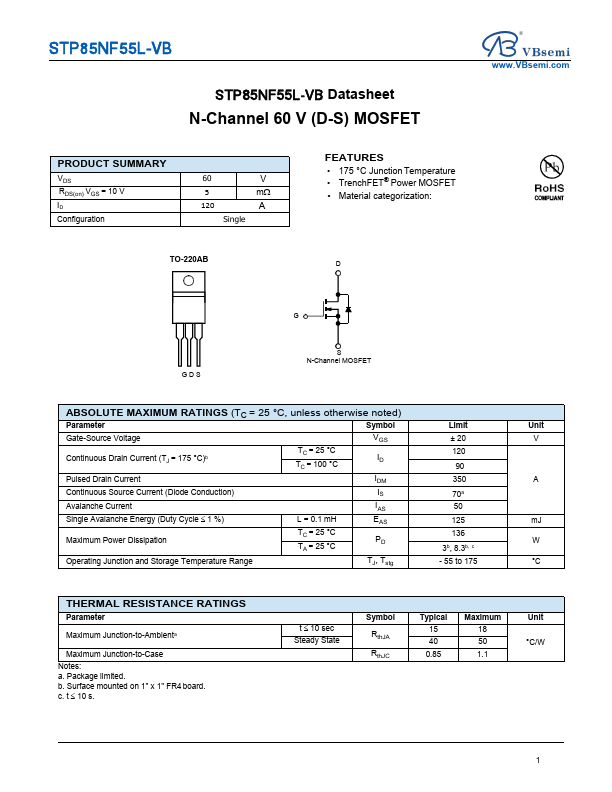

Preview of STP85NF55L PDF

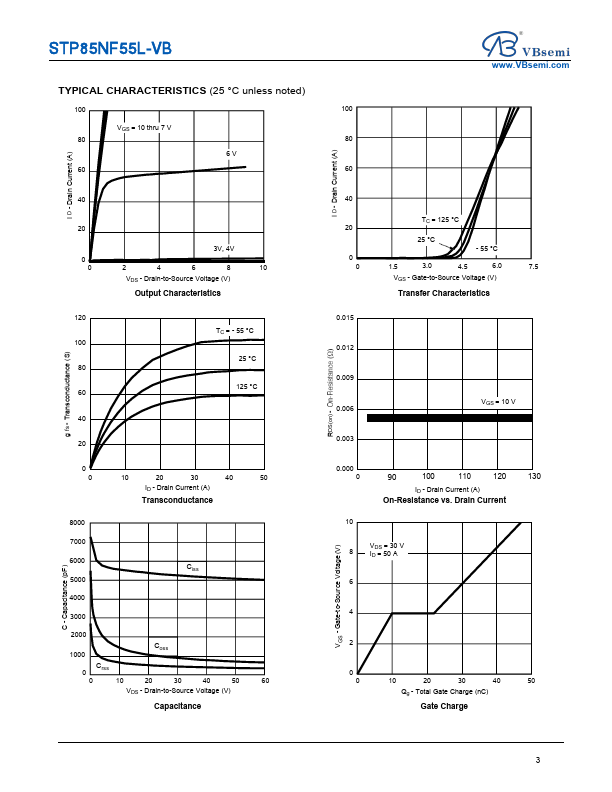

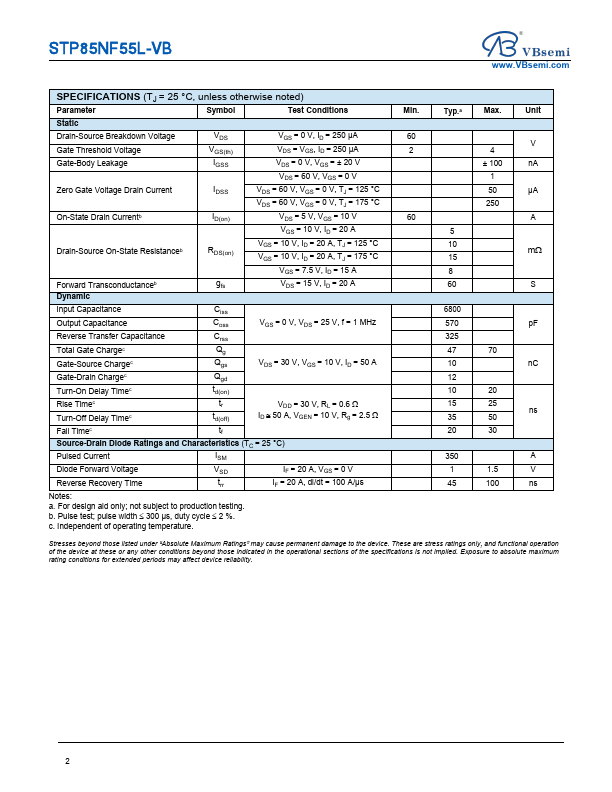

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STP85NF55L
Manufacturer
VBsemi
File Size
253.80 KB
Datasheet
STP85NF55L-VBsemi.pdf
Description
N-Channel 60V MOSFET
