SSS5N80A N-Channel 800V Power MOSFET

SSS5N80A Description

SSS5N80A-VB www.VBsemi.com SSS5N80A-VB Datasheet N-Channel 800V (D-S) Super Junction Power MOSFET PRODUCT SUMMARY VDS (V) RDS(on) (Ω) Qg (Max.) (.

SSS5N80A Features

* Dynamic dV/dt Rating
* Repetitive Avalanche Rated
* Isolated Central Mounting Hole
* Fast Switching
* Ease of Paralleling
* Simple Drive Requirements
* Compliant to RoHS Directive 2002/95/EC Available RoHS
* COMPLIANT TO-220 FULLPAK D

📥 Download Datasheet

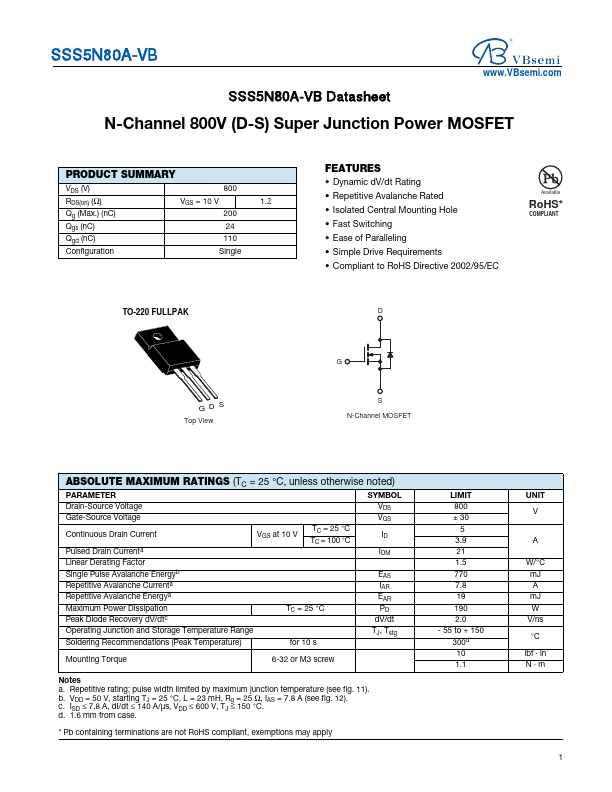

Preview of SSS5N80A PDF

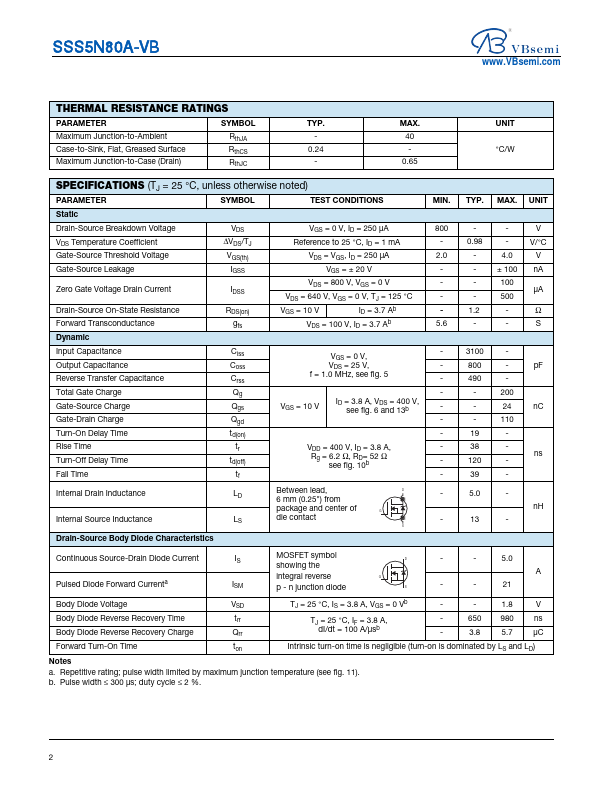

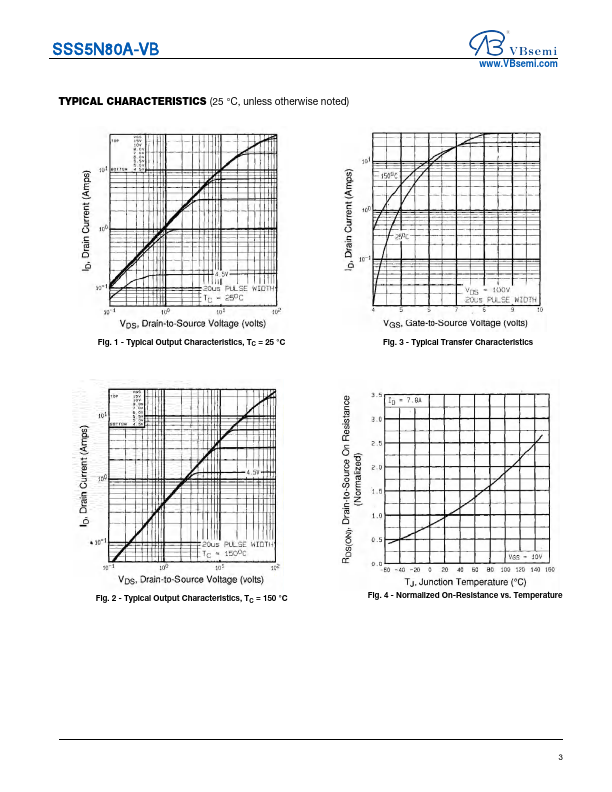

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SSS5N80A
Manufacturer
VBsemi
File Size
441.89 KB
Datasheet
SSS5N80A-VBsemi.pdf
Description
N-Channel 800V Power MOSFET
