SMG5403 P-Channel 30V Power MOSFET

SMG5403 Description

SMG5403-VB SMG5403-VB Datasheet P-Channel 30 V (D-S) MOSFET PRODUCT SUMMARY VDS (V) RDS(on) () Typ.0.046 at VGS = - 10 V - 30 0.049 at VGS = .

SMG5403 Features

* Trench Power MOSFET

SMG5403 Applications

* For Mobile Computing - Load Switch - Notebook Adaptor Switch - DC/DC Converter G1 S2 3D Top View G D P-Channel MOSFET www. VBsemi. com ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) Parameter Symbol Limit Drain-Source Voltage Gate-Source Voltage Continuous Drain Curr

📥 Download Datasheet

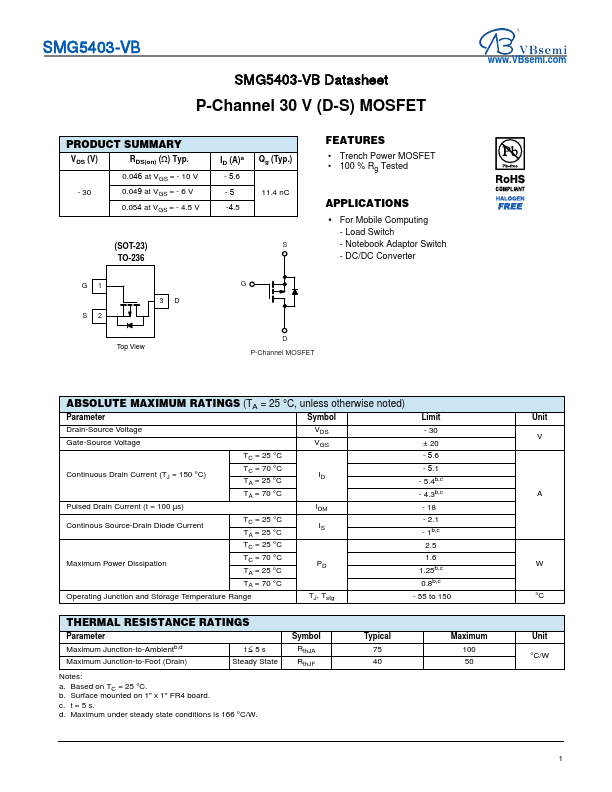

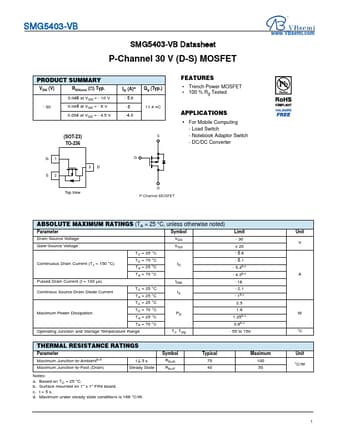

Preview of SMG5403 PDF

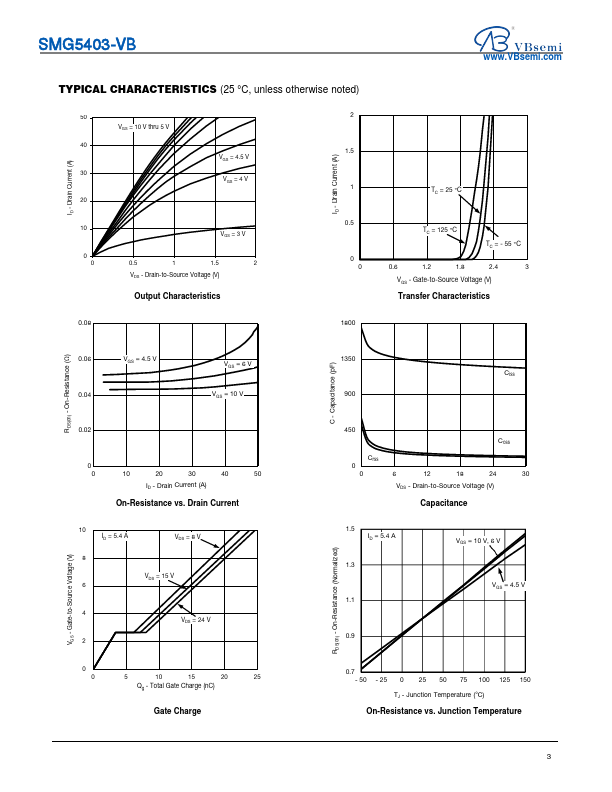

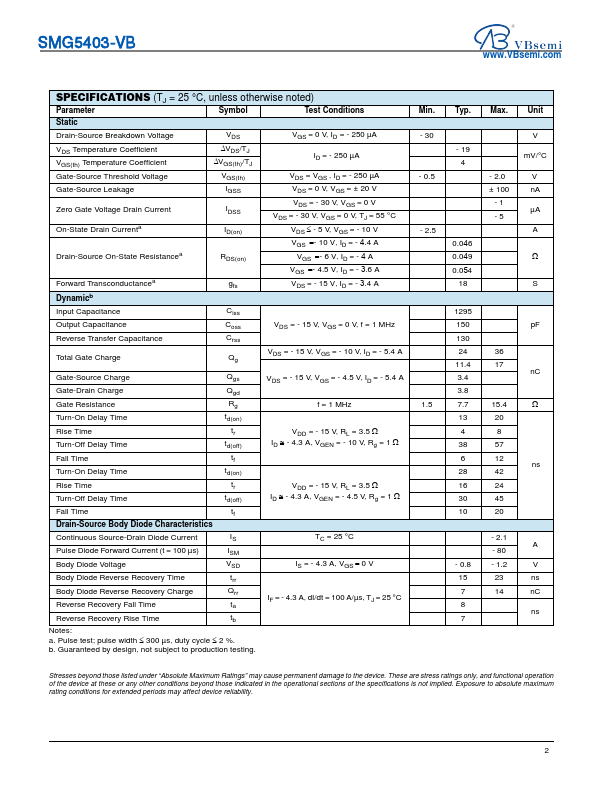

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SMG5403
Manufacturer
VBsemi
File Size
240.84 KB
Datasheet
SMG5403-VBsemi.pdf
Description
P-Channel 30V Power MOSFET
