MTC2402Q8 - N- & P-Channel 20V MOSFET

MTC2402Q8 Description

MTC2402Q8-VB MTC2402Q8-VB Datasheet N- and P-Channel 20-V (D-S) MOSFETS www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 0.006 at VGS = 4.5 V N.

MTC2402Q8 Features

* Halogen-free

MTC2402Q8 Applications

* Load Switch
* DC/DC Converter D1 RoHS COMPLIANT S2 G2 G1 S1 N-Channel MOSFET D2 P-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol N-Channel P-Channel Unit Drain-Source Voltage Gate-Source Voltage VDS 20 - 20 V VGS ± 12 TC

📥 Download Datasheet

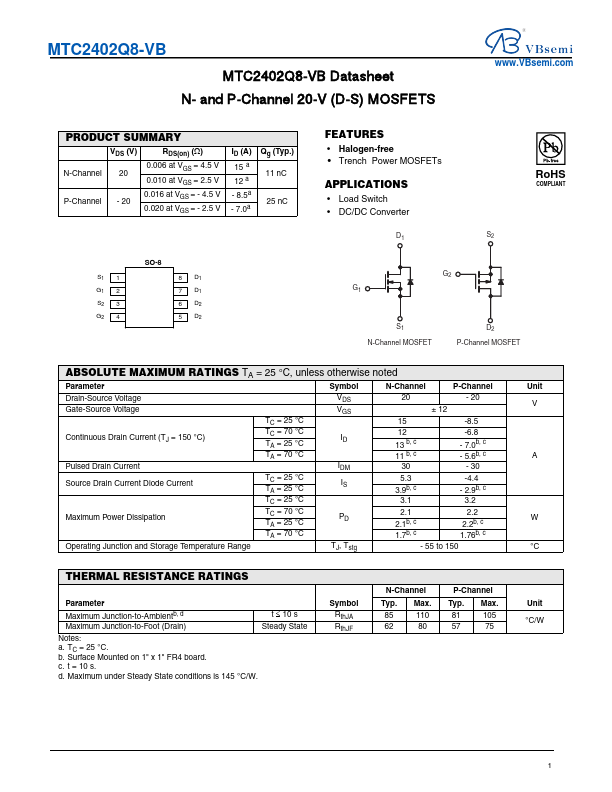

Preview of MTC2402Q8 PDF

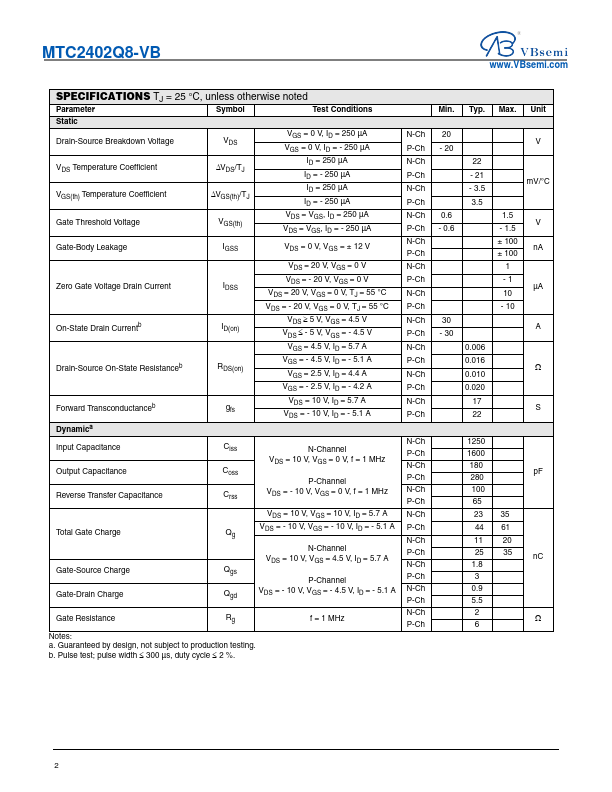

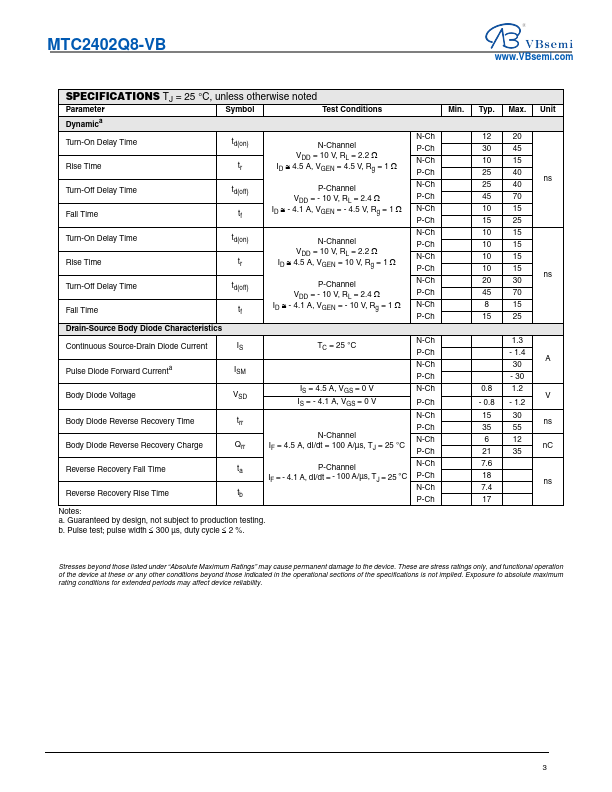

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MTC2402Q8
Manufacturer
VBsemi
File Size
303.93 KB
Datasheet
MTC2402Q8-VBsemi.pdf
Description
N- & P-Channel 20V MOSFET
