K2750 - N-Channel 650V Power MOSFET

Features

  • Low Gate Charge Qg Results in Simple Drive Requirement.
  • Improved Gate, Avalanche and Dynamic dV/dt Ruggedness Available RoHS.

📥 Download Datasheet

Datasheet Details

Part number K2750
Manufacturer VBsemi
File Size 306.78 KB
Description N-Channel 650V Power MOSFET
Datasheet download datasheet K2750 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
K2750 Silicon N-Channel MOSFET Toshiba
K2756-01R 2SK2756-01R Fuji Electric
K270 Silicon Zener Diodes Aeroflex
K270 LOW LEVEL ZENER DIODES VERY LOW VOLTAGE/ LOW LEAKAGE Knox Inc
K2700 2SK2700 Toshiba Semiconductor

Other Datasheets by VBsemi

Part Number Description
K2793 N-Channel 650V Power MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

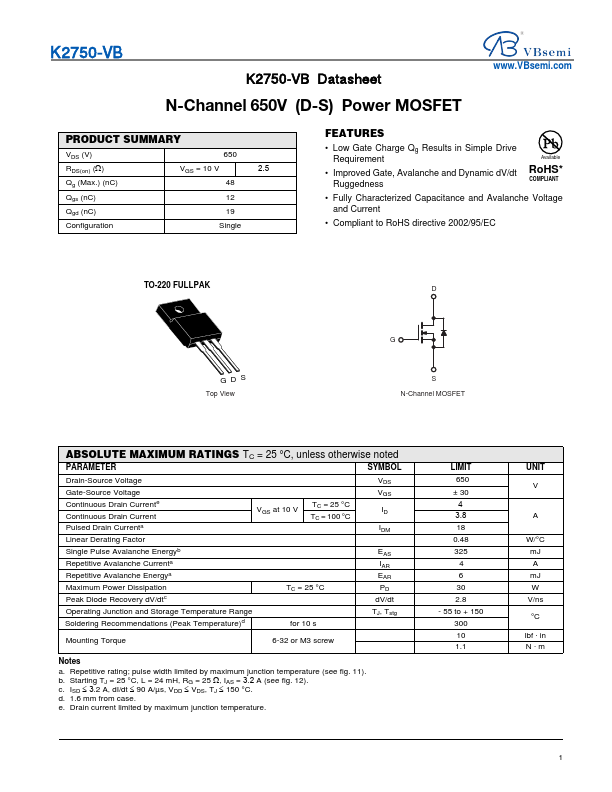

K2750-VB K2750-VB Datasheet N-Channel 650V (D-S) Power MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) Qg (Max.) (nC) Qgs (nC) Qgd (nC) Configuration 650 VGS = 10 V 2.
