K2687-01 - N-Channel 30V MOSFET

Features

  • Trench power MOSFET.
  • Package with low thermal resistance.
  • 100 % Rg and UIS tested D G GD S Top View.

📥 Download Datasheet

Datasheet Details

Part number K2687-01
Manufacturer VBsemi
File Size 309.94 KB
Description N-Channel 30V MOSFET
Datasheet download datasheet K2687-01 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
K2600G Sidac JIEJIE
K2600G Axial Leaded Silicon Bilateral Voltage Triggered Diode Sunmate
K2600S Sidac JIEJIE
K2601 2SK2601 Toshiba Semiconductor
K2604 2SK2604 Toshiba Semiconductor

Other Datasheets by VBsemi

Part Number Description
K2664 N-Channel 900-V Power MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

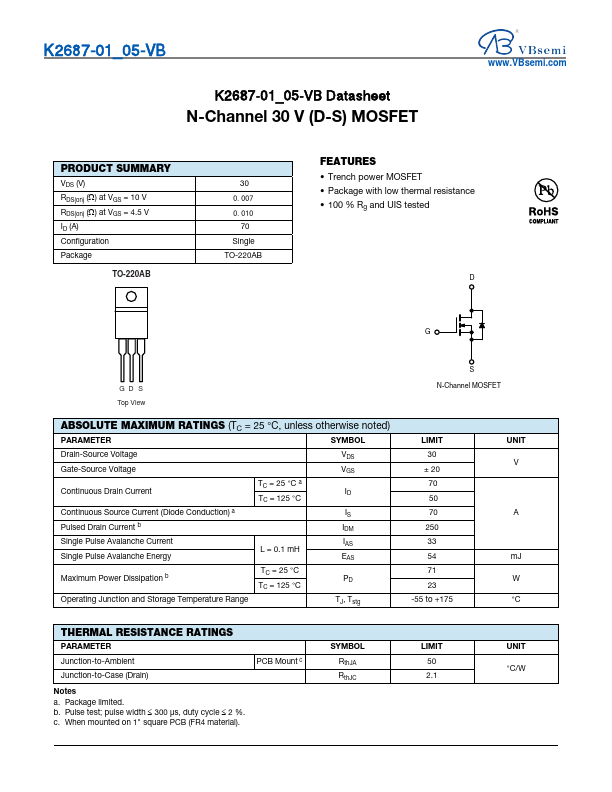

K2687-01_05-VB K2687-01_05-VB Datasheet N-Channel 30 V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) () at VGS = 10 V RDS(on) () at VGS = 4.5 V ID (A) Configuration Package TO-220AB 30 0.007 0.010 70 Single TO-220AB FEATURES • Trench power MOSFET • Package with low thermal resistance • 100 % Rg and UIS tested D G GD S Top View ABSOLUTE MAXIMUM RATINGS (TC = 25 °C, unless otherwise noted) PARAMETER SYMBOL Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Continuous Source Current (Diode Conduction) a TC = 25 °C a TC = 125 °C Pulsed Drain Current b Single Pulse Avalanche Current Single Pulse Avalanche Energy L = 0.
