K2484 N-Channel 900V Power MOSFET

K2484 Description

K2484-VB www.VBsemi.com K2484-VB Datasheet N-Channel 900V (D-S) Super Junction Power MOSFET PRODUCT SUMMARY VDS (V) RDS(on) (Ω) Qg (Max.) (nC) Qgs.

K2484 Features

* Dynamic dV/dt Rating
* Repetitive Avalanche Rated
* Isolated Central Mounting Hole
* Fast Switching
* Ease of Paralleling
* Simple Drive Requirements
* Compliant to RoHS Directive 2002/95/EC Available RoHS
* COMPLIANT TO-220AB D G GD S

📥 Download Datasheet

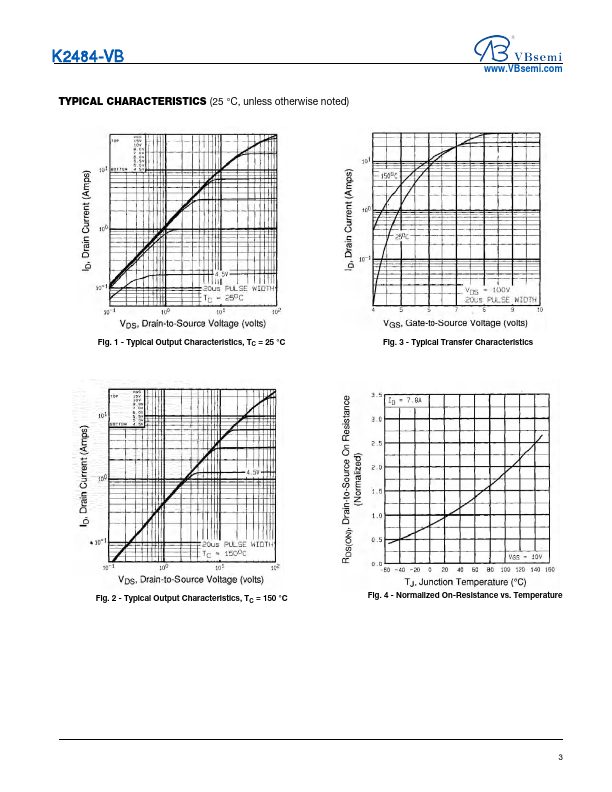

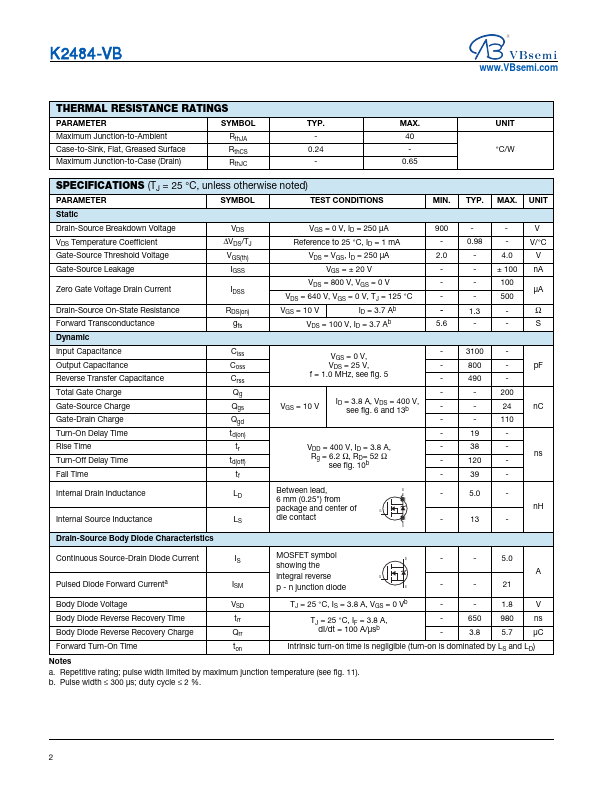

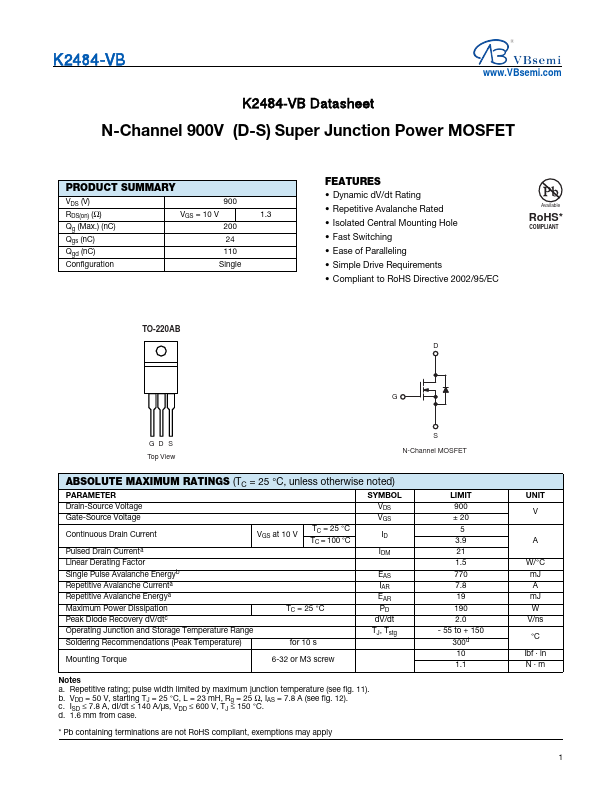

Preview of K2484 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
K2484
Manufacturer
VBsemi
File Size
428.86 KB
Datasheet
K2484-VBsemi.pdf
Description
N-Channel 900V Power MOSFET
