K2314 - N-Channel 100-V MOSFET

K2314 Description

K2314-VB K2314-VB Datasheet N-Channel 100-V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) () at VGS = 10 V ID (A) a Configuration 1.

K2314 Features

* Trench Power MOSFETS
* 175 °C Junction Temperature
* Low Thermal Resistance Package Available RoHS
* COMPLIANT D TO-220AB G GD S Top View S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TC = 25 °C, unless otherwise noted Parameter Symbol Drain-Source Voltage VDS G

📥 Download Datasheet

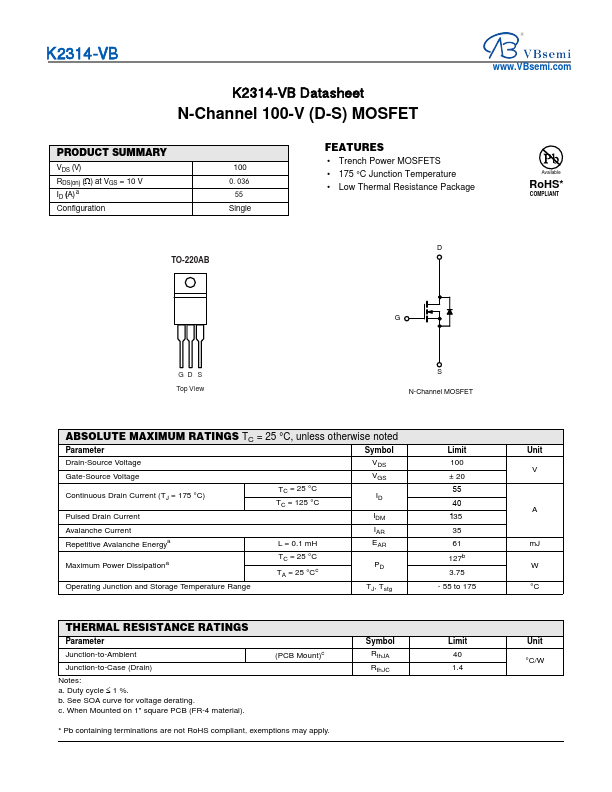

Preview of K2314 PDF

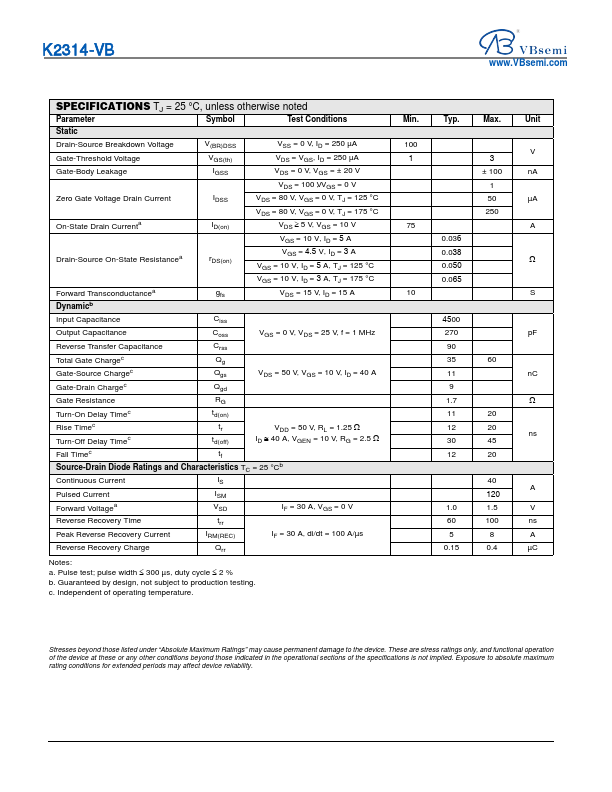

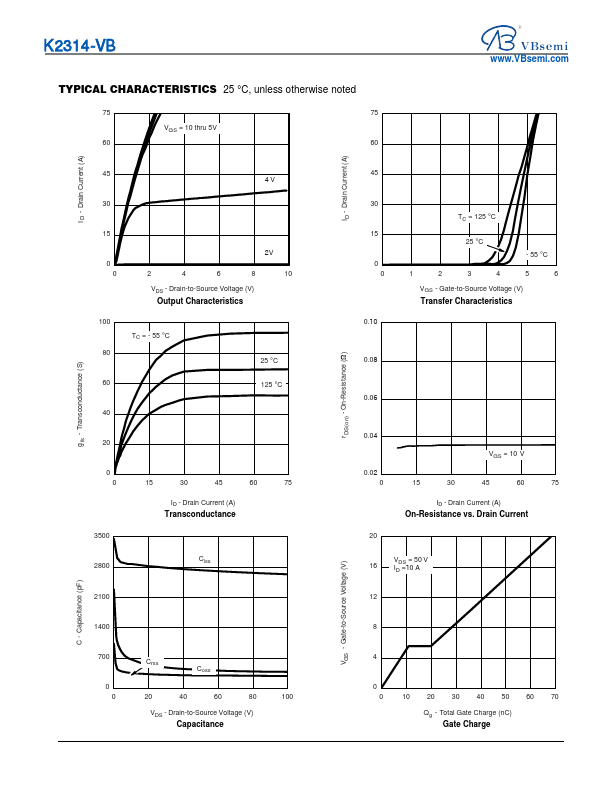

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
K2314
Manufacturer
VBsemi
File Size
250.29 KB
Datasheet
K2314-VBsemi.pdf
Description
N-Channel 100-V MOSFET
