HY3704P - N-Channel 40-V MOSFET

HY3704P Description

HY3704P-VB HY3704P-VB Datasheet N-Channel 40-V (D-S) MOSFET PRODUCT SUMMARY VDS RDS(on) VGS = 10 V ID Configuration 40 V 2 m 180 A Single T.

HY3704P Features

* Trench Power MOSFET

HY3704P Applications

* Synchronous Rectification
* Power Supplies D www. VBsemi. com RoHS COMPLIANT G GDS Top View S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS TC = 25 °C Continuous Drain Curren

📥 Download Datasheet

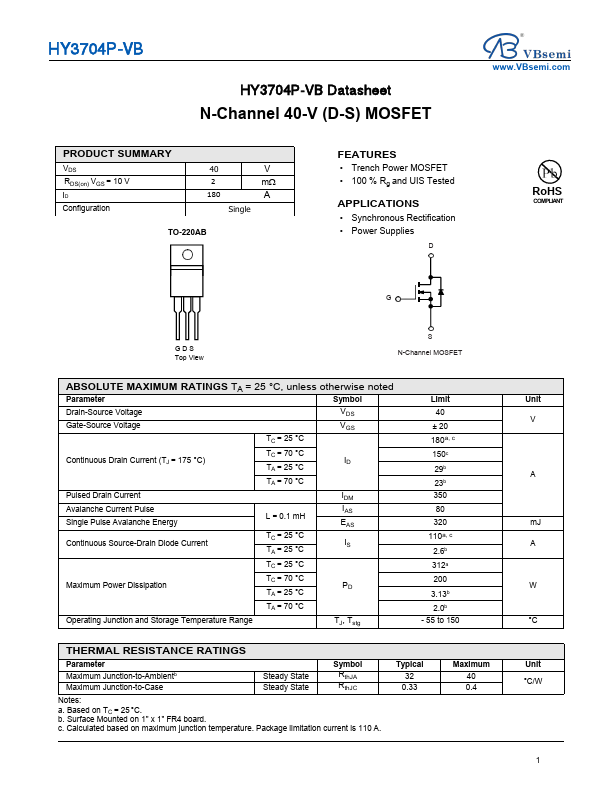

Preview of HY3704P PDF

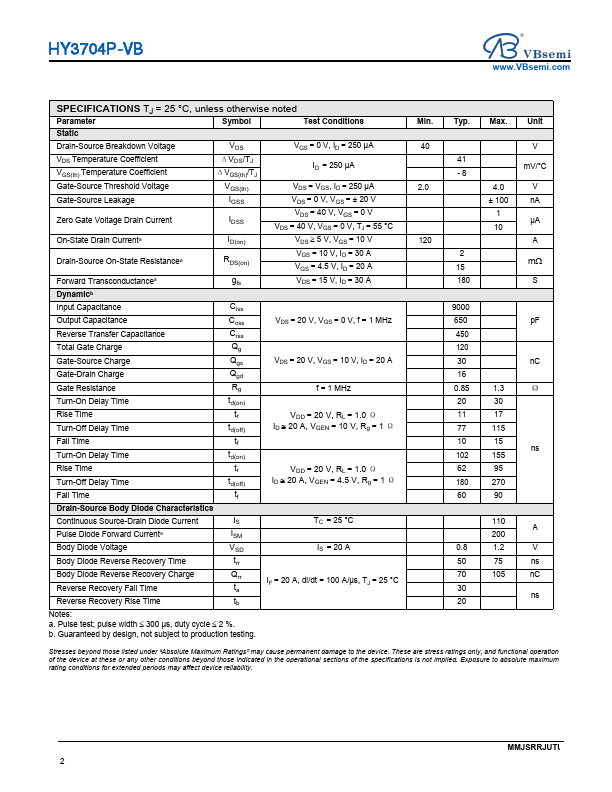

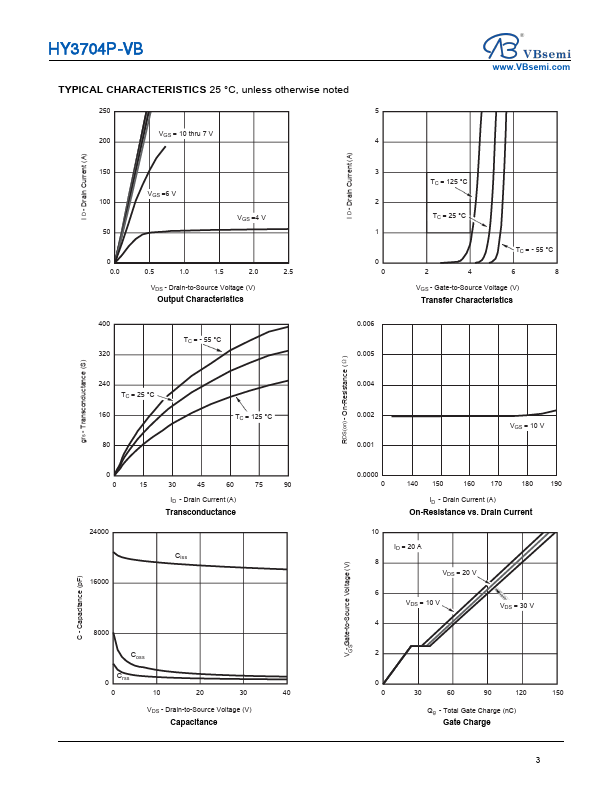

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HY3704P
Manufacturer
VBsemi
File Size
345.23 KB
Datasheet
HY3704P-VBsemi.pdf
Description
N-Channel 40-V MOSFET
