FS7KM-16A - N-Channel 800V Power MOSFET

VBsemi

The FS7KM-16A by VBsemi is a N-Channel 800V Power MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

FS7KM-16A N-Channel 800V Power MOSFET by VBsemi - Datasheet Preview — Official preview page of the FS7KM-16A N-Channel 800V Power MOSFET datasheet (VBsemi).

Datasheet Details

Part number	FS7KM-16A
Manufacturer	VBsemi
File Size	441.95 KB
Description	N-Channel 800V Power MOSFET
Datasheet	FS7KM-16A-VBsemi.pdf

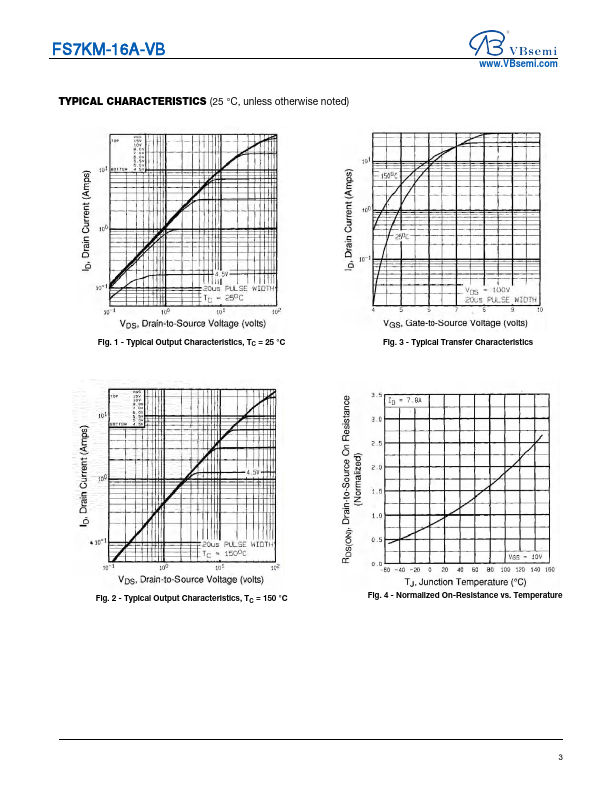

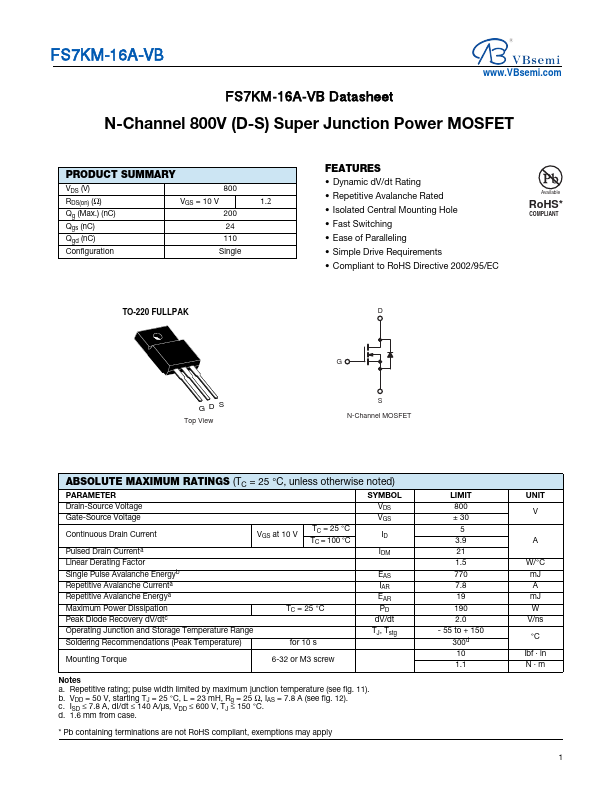

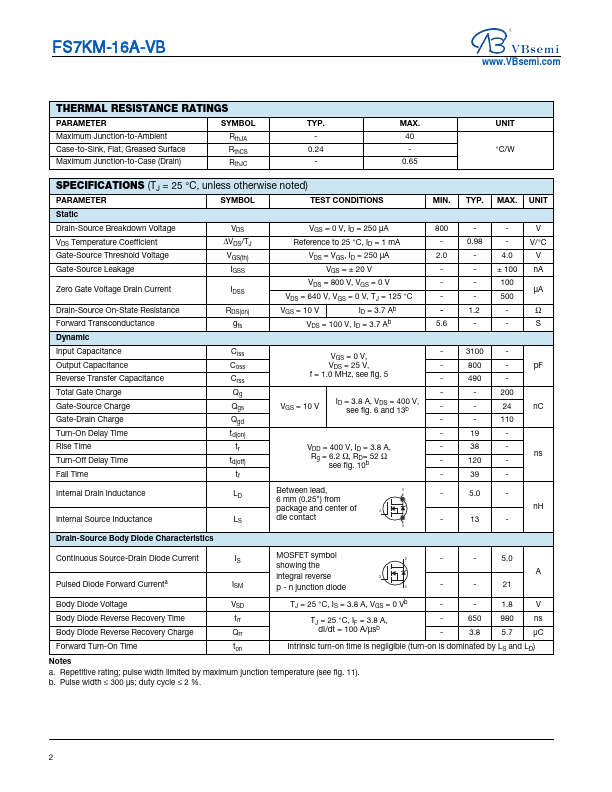

Additional preview pages of the FS7KM-16A datasheet.

FS7KM-16A Product details

Features

Dynamic dV/dt Rating.
Repetitive Avalanche Rated.
Isolated Central Mounting Hole.
Fast Switching.
Ease of Paralleling.
Simple Drive Requirements.
Compliant to RoHS Directive 2002/95/EC Available RoHS.
