FS523 N-Channel 60V MOSFET

FS523 Description

FS523-VB FS523-VB Datasheet N-Channel 60 V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) Qg (Max.) (nC) Qgs (nC) Qgd (nC) Config.

FS523 Features

* Isolated Package
* High Voltage Isolation = 2.5 kVRMS (t = 60 s; f = 60 Hz)
* Sink to Lead Creepage Distance = 4.8 mm
* 175 °C Operating Temperature
* Dynamic dV/dt Rating
* Low Thermal Resistance
* Lead (Pb)-free Available RoHS COMPLIANT D

📥 Download Datasheet

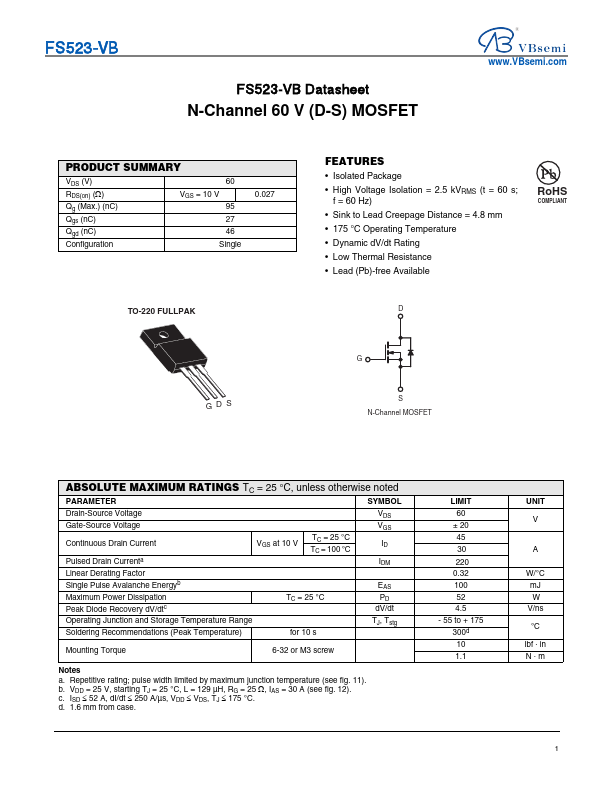

Preview of FS523 PDF

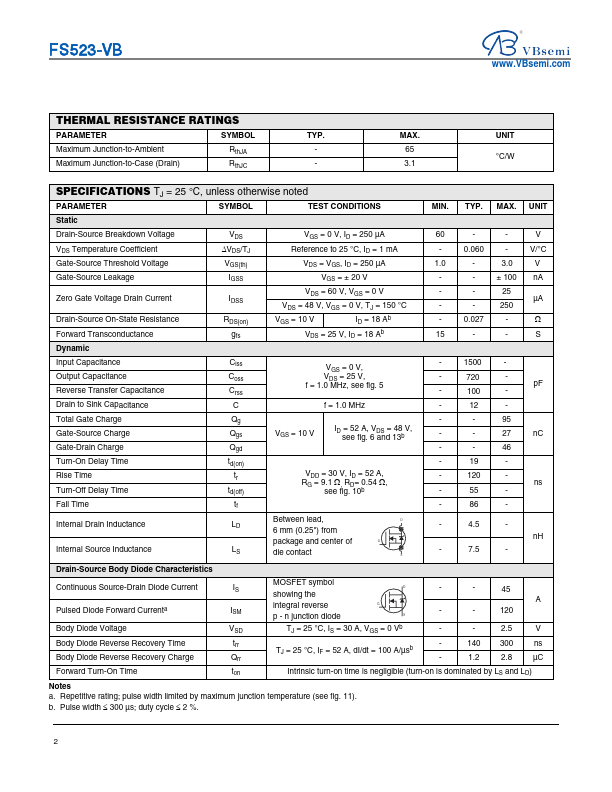

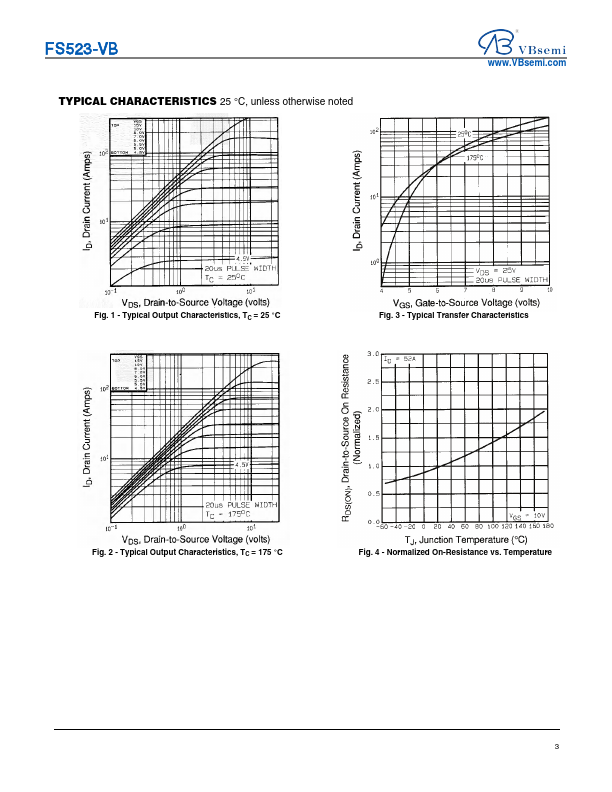

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
FS523
Manufacturer
VBsemi
File Size
1.05 MB
Datasheet
FS523-VBsemi.pdf
Description
N-Channel 60V MOSFET
