FR120N N-Channel 100V MOSFET

FR120N Description

FR120N N-Channel 100 V (D-S) MOSFET www.VBsemi.tw PRODUCT SUMMARY VDS (V) 100 RDS(on) () 0.114 at VGS = 10 V ID (A) 15 TO-252 D G .

FR120N Features

* TrenchFET® Power MOSFET
* 175 °C Junction Temperature
* PWM Optimized
* 100 % Rg Tested

FR120N Applications

* Primary Side Switch GD S S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS Continuous Drain Current (TJ = 175 °C)b TC = 25 °C TC = 125 °C ID Pulsed Drain Current IDM Continuous S

📥 Download Datasheet

Preview of FR120N PDF

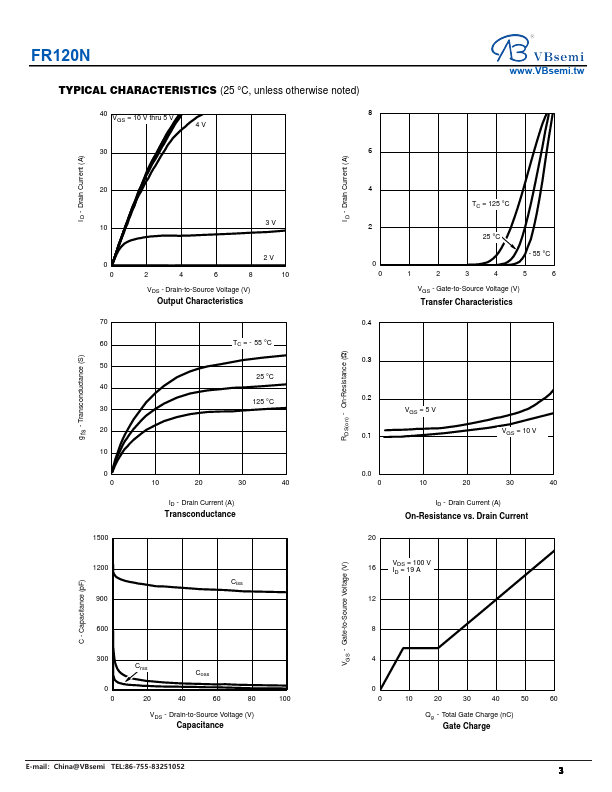

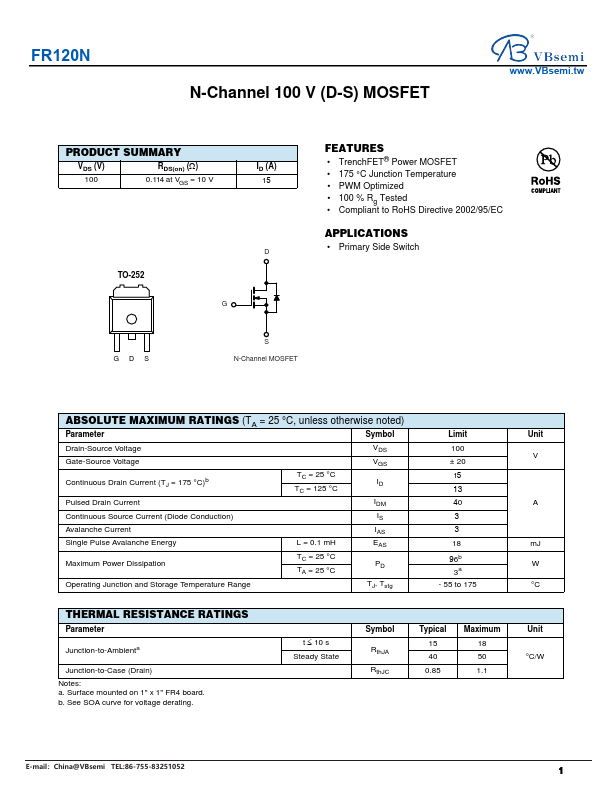

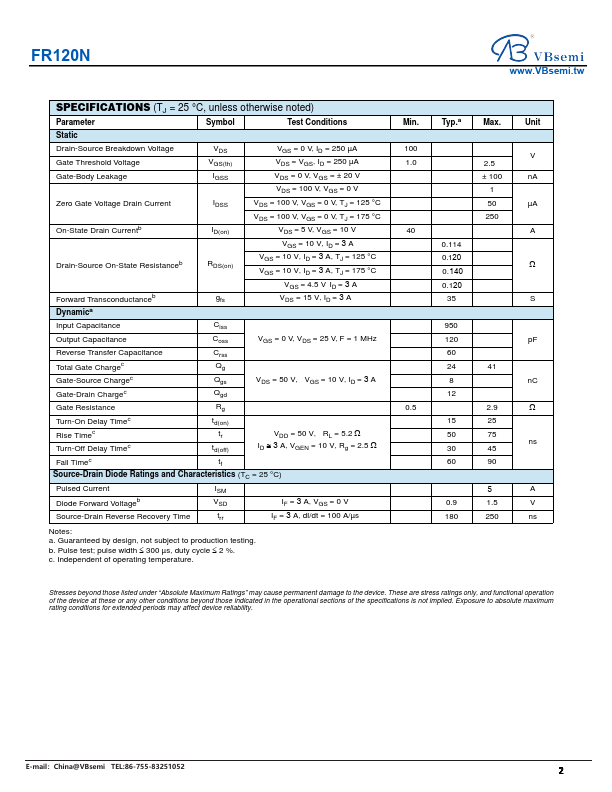

datasheet Preview Page 2 datasheet Preview Page 3
