F9643 N-Channel 150-V MOSFET

F9643 Description

F9643-VB F9643-VB Datasheet P-Channel 150 V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) - 150 0.100 at VGS = - 10 V 0.120 a.

F9643 Features

* Halogen-free According to IEC 61249-2-21 Definition
* Trench Power MOSFET
* 100 % Rg and UIS Tested

F9643 Applications

* Power Switch
* DC/DC Converters S G GD S Top View D P-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TC = 25 °C, unless otherwise noted Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS Continuous Drain Current (TJ = 150 °C) TC = 25 °C TC = 70 °C ID Pulsed Dr

📥 Download Datasheet

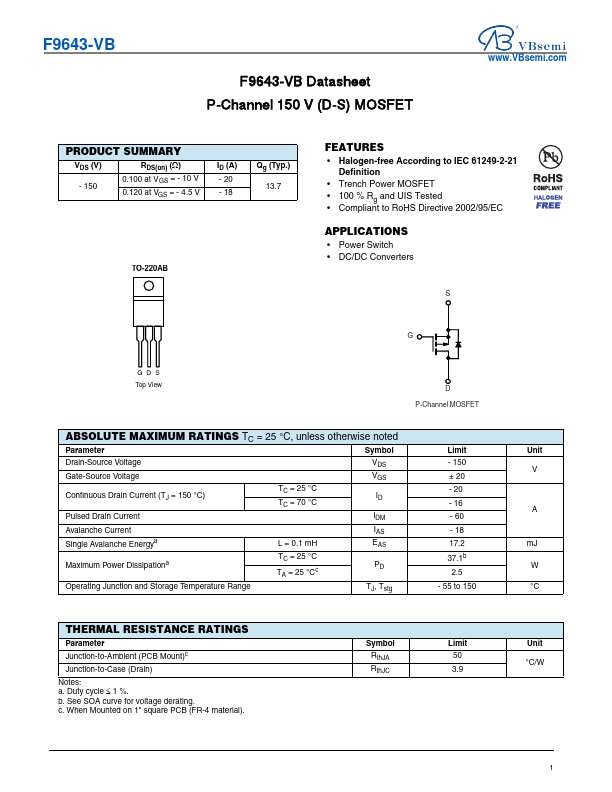

Preview of F9643 PDF

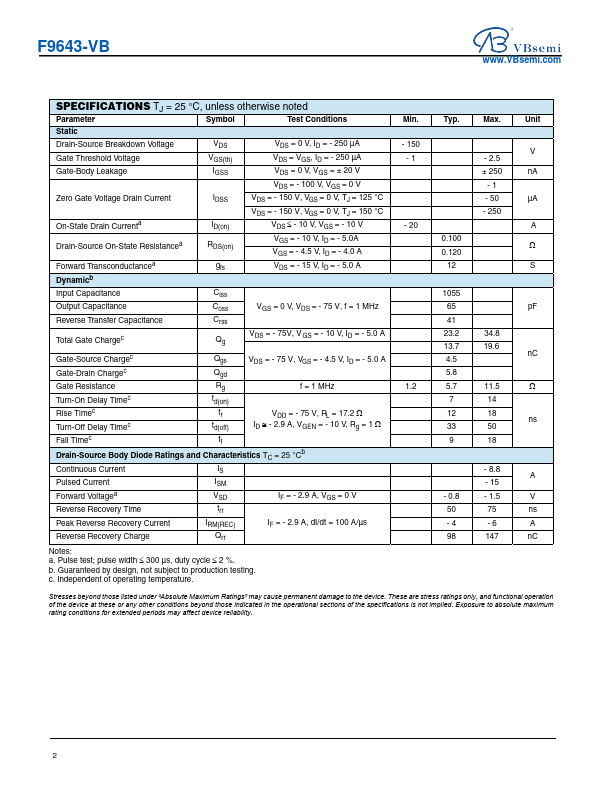

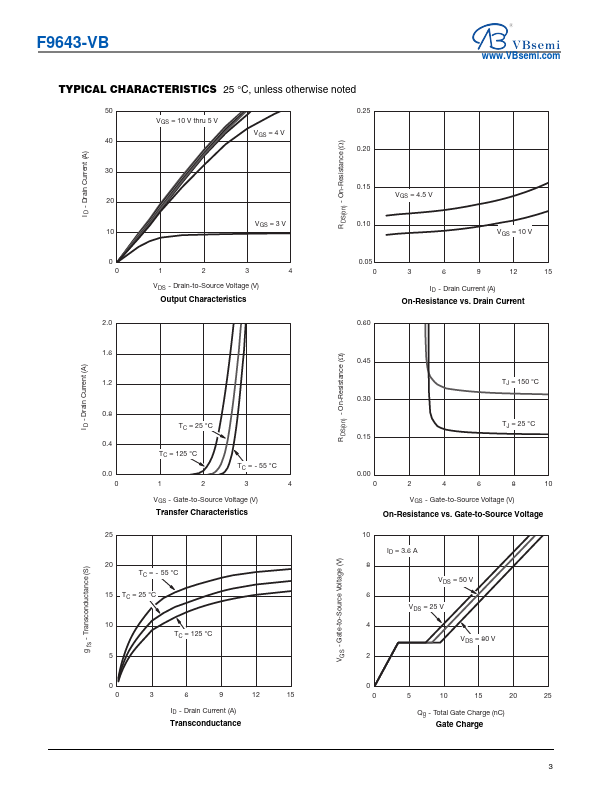

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
F9643
Manufacturer
VBsemi
File Size
252.74 KB
Datasheet
F9643-VBsemi.pdf
Description
N-Channel 150-V MOSFET
