F7805ZG - N-Channel 30V MOSFET

Datasheet Summary

Features

Halogen-free.
Trench Power MOSFET.
Optimized for High-Side Synchronous Rectifier Operation.
100 % Rg Tested.
100 % UIS Tested S1 S2 S3 G4 SO-8 8D 7D 6D 5D.

VBsemi

📥 Download Datasheet

Datasheet Details

Part number	F7805ZG
Manufacturer	VBsemi
File Size	183.81 KB
Description	N-Channel 30V MOSFET
Datasheet	F7805ZG Datasheet

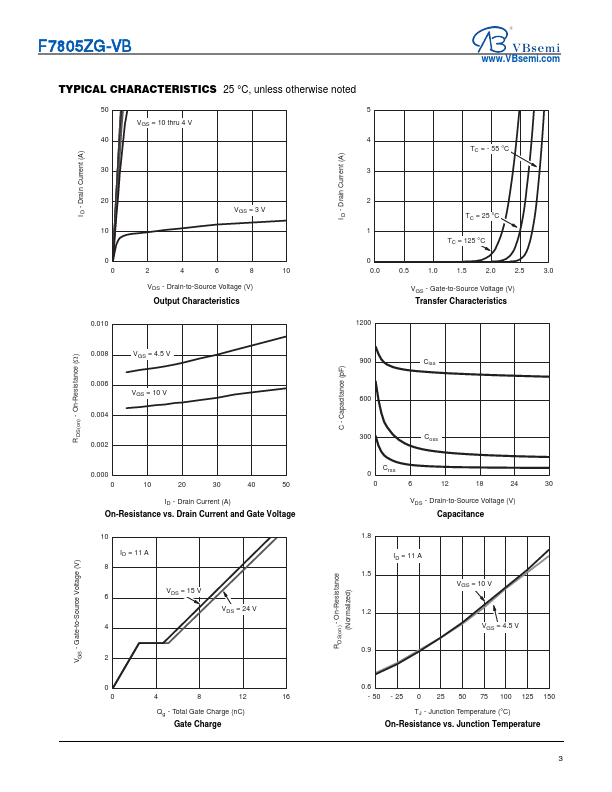

Additional preview pages of the F7805ZG datasheet.

📁 Similar Datasheet

F7811W - IRF7811W (International Rectifier)

Other Datasheets by VBsemi

F7820 - N-Channel 200V MOSFET

Full PDF Text Transcription

Click to expand full text

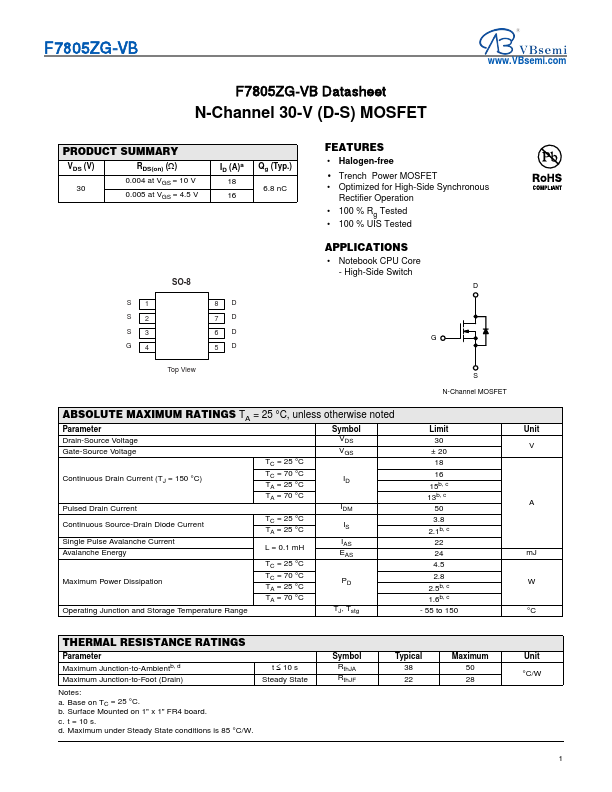

F7805ZG-VB F7805ZG-VB Datasheet N-Channel 30-V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 30 0.004 at VGS = 10 V 0.005 at VGS = 4.5 V ID (A)a 18 16 Qg (Typ.) 6.
