F7410 - P-Channel 12V MOSFET

Datasheet Summary

Features

  • Halogen-free According to IEC 61249-2-21 Definition.
  • Trench Power MOSFET.
  • Compliant to RoHS Directive 2002/95/EC.

📥 Download Datasheet

Datasheet preview – F7410

Datasheet Details

Part number F7410
Manufacturer VBsemi
File Size 162.08 KB
Description P-Channel 12V MOSFET
Datasheet download datasheet F7410 Datasheet
Additional preview pages of the F7410 datasheet.

📁 Similar Datasheet

Other Datasheets by VBsemi

    Full PDF Text Transcription

    Click to expand full text

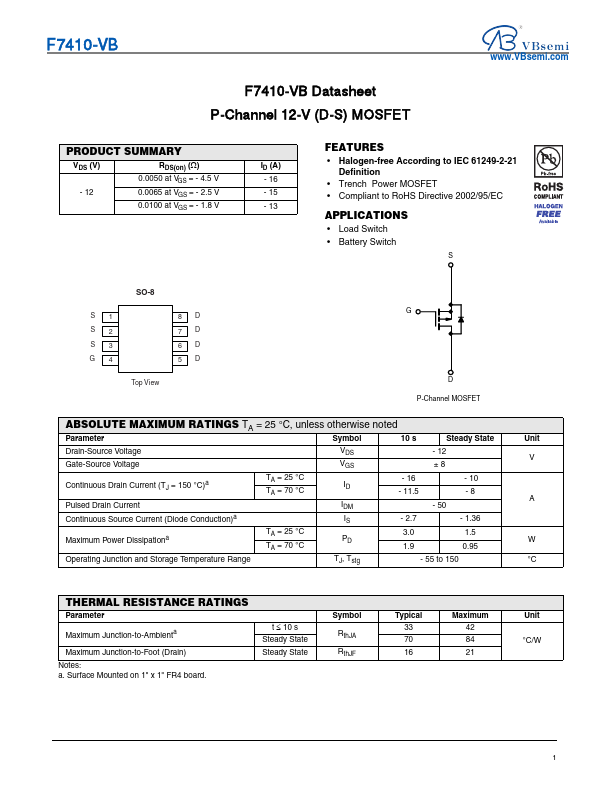

    F7410-VB www.VBsemi.com F7410-VB Datasheet P-Channel 12-V (D-S) MOSFET PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 0.0050 at VGS = - 4.5 V - 12 0.0065 at VGS = - 2.5 V 0.0100 at VGS = - 1.8 V ID (A) - 16 - 15 - 13 FEATURES • Halogen-free According to IEC 61249-2-21 Definition • Trench Power MOSFET • Compliant to RoHS Directive 2002/95/EC APPLICATIONS • Load Switch • Battery Switch S SO-8 S1 S2 S3 G4 8D 7D 6D 5D Top View G D P-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol 10 s Steady State Unit Drain-Source Voltage Gate-Source Voltage VDS - 12 V VGS ±8 Continuous Drain Current (TJ = 150 °C)a Pulsed Drain Current TA = 25 °C TA = 70 °C ID - 16 - 10 - 11.
