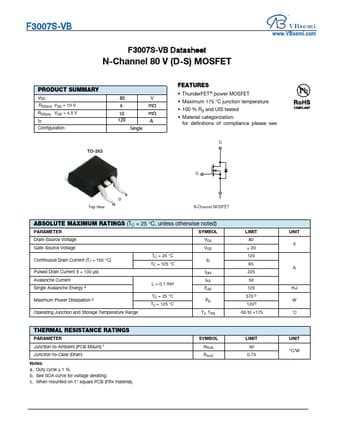

F3007S-VB
F3007S-VB Datasheet
N-Channel 80 V (D-S) MOSFET
www.VBsemi.com
PRODUCT SUMMARY
VDS RDS(on) VGS = 10 V RDS(on) VGS = 4.5 V ID Configuration
80
V
6
mΩ
10
mΩ
120
A
Single
TO-263
FEATURES • ThunderFET® power MOSFET • Maximum 175 °C junction temperature • 100 % Rg and UIS tested • Material categorization:
for definitions of compliance please see
D
G
Top View
S D G
S N-Channel MOSFET
ABSOLUTE MAXIMUM RATINGS (TC = 25 °C, unless otherwise noted)
PARAMETER
SYMBOL
Drain-Source Voltage
VDS
Gate-Source Voltage
VGS
Continuous Drain Current (TJ = 150 °C)
TC = 25 °C ID
TC = 125 °C
Pulsed Drain Current (t = 100 μs)
IDM
Avalanche Current Single Avalanche Energy a
IAS L = 0.
