EMH2308 - Dual P-Channel 20V MOSFET

Product Overview

VBsemi

Part number	EMH2308
Manufacturer	VBsemi
File Size	199.93 KB
Description	Dual P-Channel 20V MOSFET
Datasheet	EMH2308 Datasheet

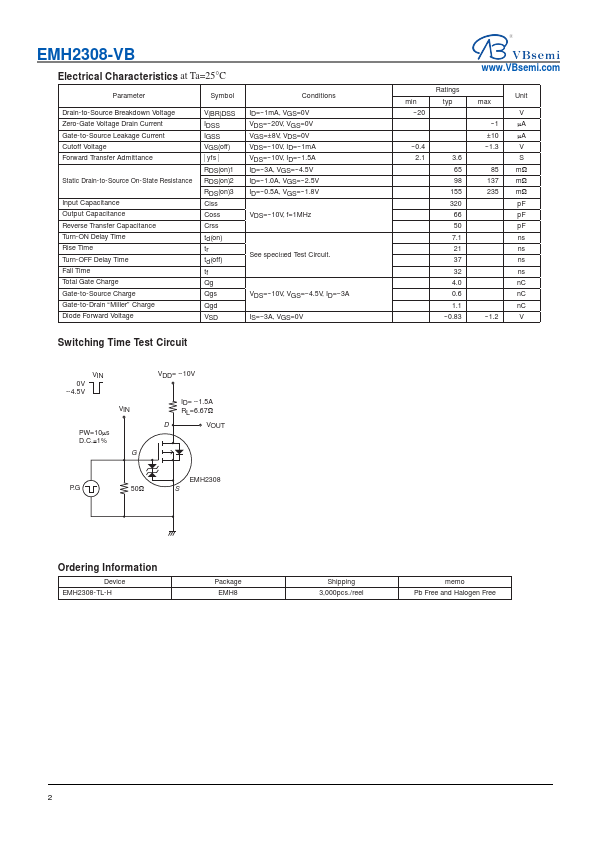

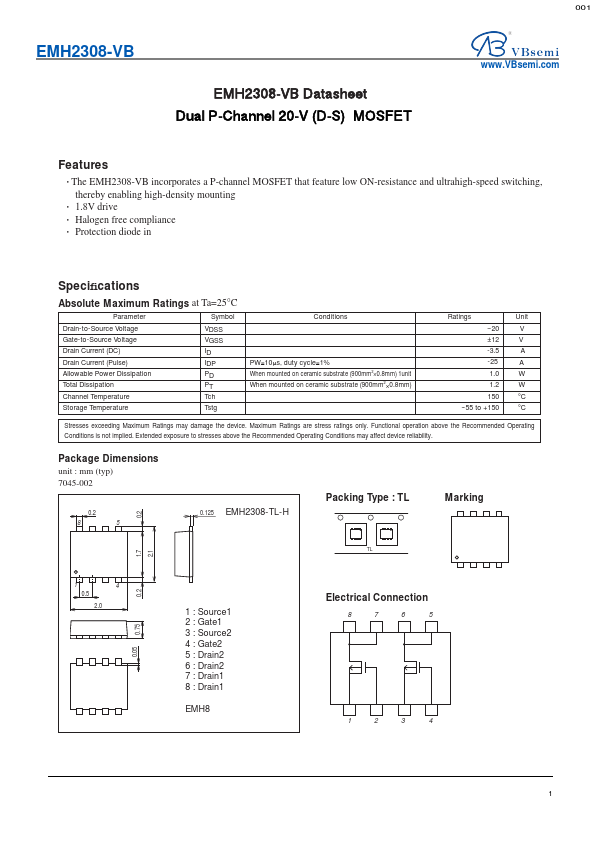

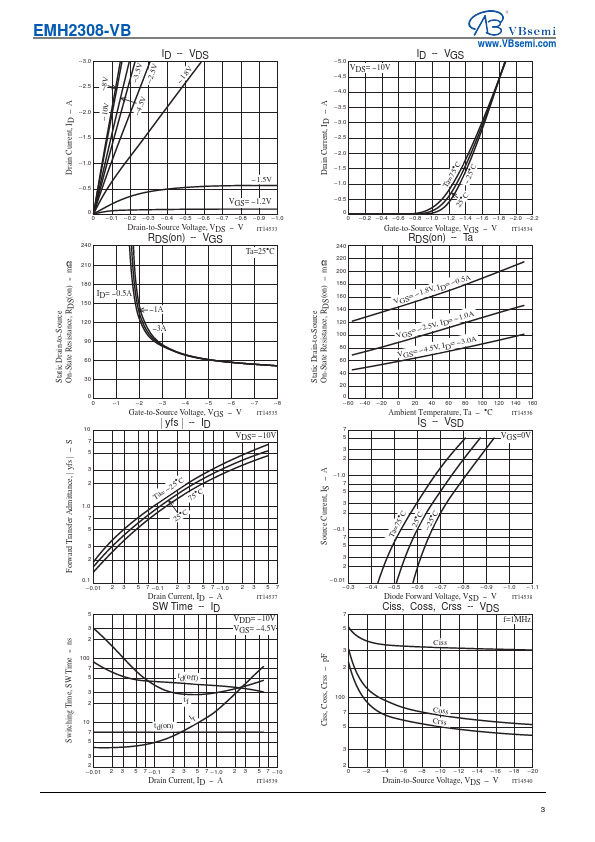

Additional preview pages of the EMH2308 datasheet.

The EMH2308-VB incorporates a P-channel MOSFET that feature low ON-resistance and ultrahigh-speed switching, thereby enabling high-density mounting.
1.8V drive.
Halogen free compliance.
Protection diode in Speciﬁcations Absolute Maximum Ratings at Ta=25°C Parameter Drain-to-Source Voltage Gate-to-Source Voltage Drain Current (DC) Drain Current (Pulse) Allowable Power Dissipation Total Dissipation Channel Temperature Storage Temperature Symbol VDSS VGSS ID.
