BS250FTA - P-Channel 60V MOSFET

Name: BS250FTA
SKU: BS250FTA-1577550

VBsemi

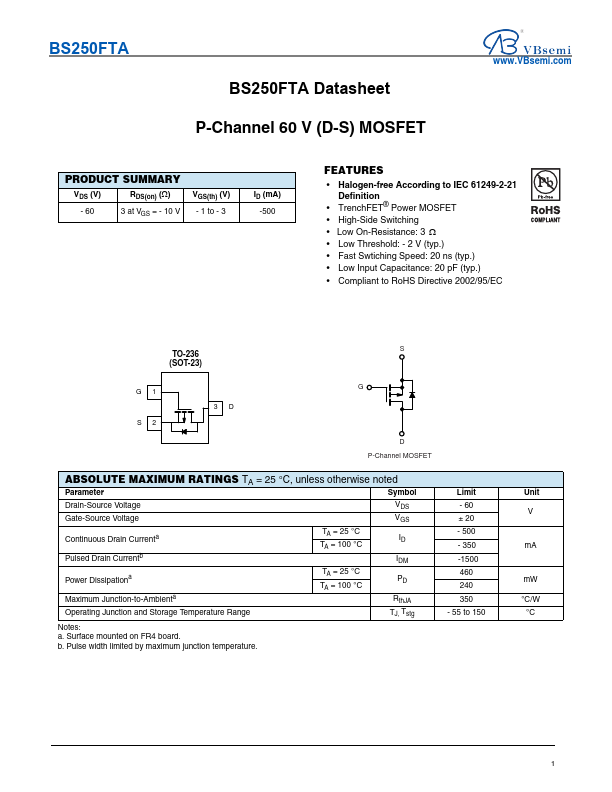

The BS250FTA by VBsemi is a P-Channel 60V MOSFET. Below is the official datasheet preview.

Datasheet Details

Part number	BS250FTA
Manufacturer	VBsemi
File Size	301.35 KB
Description	P-Channel 60V MOSFET
Datasheet	BS250FTA-VBsemi.pdf

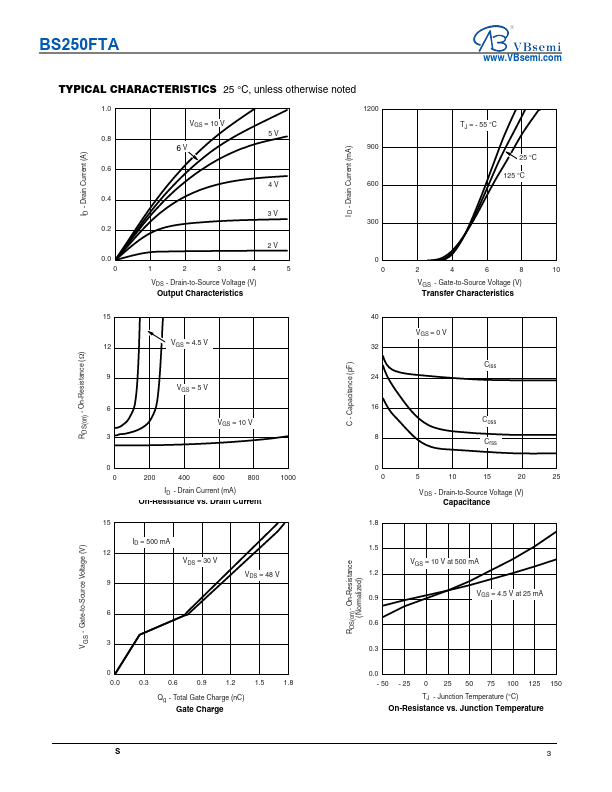

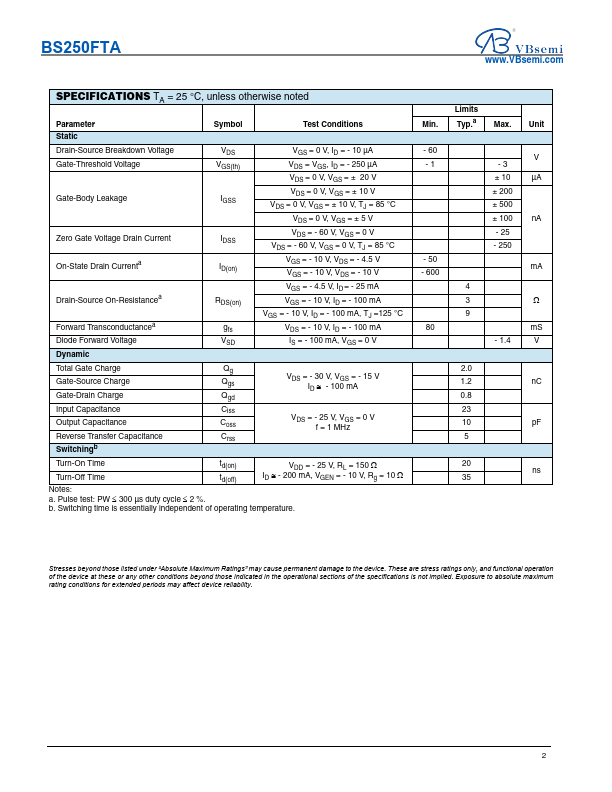

Additional preview pages of the BS250FTA datasheet.

Halogen-free According to IEC 61249-2-21 Definition.
TrenchFET® Power MOSFET.
High-Side Switching.
Low On-Resistance: 3 .
Low Threshold: - 2 V (typ. ).
Fast Swtiching Speed: 20 ns (typ. ).
Low Input Capacitance: 20 pF (typ. ).
Compliant to RoHS Directive 2002/95/EC S TO-236 (SOT-23) G1 S2 3D G D P-Channel MOSFET.
