B20NM60D N-Channel 650V Power MOSFET

B20NM60D Description

B20NM60D-VB www.VBsemi.com B20NM60D-VB Datasheet N-Channel 650 V (D-S) Super Junction Power MOSFET PRODUCT SUMMARY VDS (V) at TJ max.RDS(on) at 2.

B20NM60D Features

* Low figure-of-merit (FOM) Ron x Qg
* Low input capacitance (Ciss)
* Reduced switching and conduction losses
* Ultra low gate charge (Qg)

B20NM60D Applications

* Server and telecom power supplies
* Switch mode power supplies (SMPS)
* Power factor correction power supplies (PFC)
* Lighting - High-intensity discharge (HID) - Fluorescent ballast lighting
* Industrial - Welding - Induction heating - Motor drives - Batter

📥 Download Datasheet

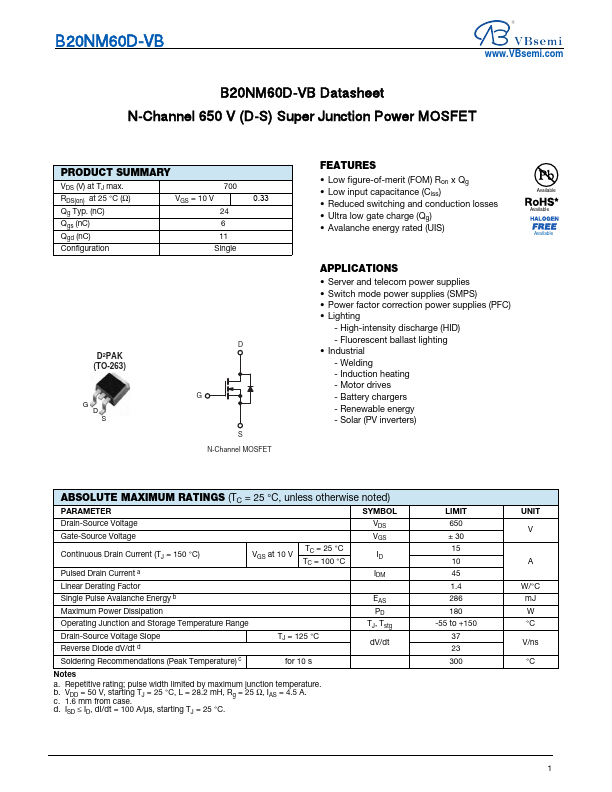

Preview of B20NM60D PDF

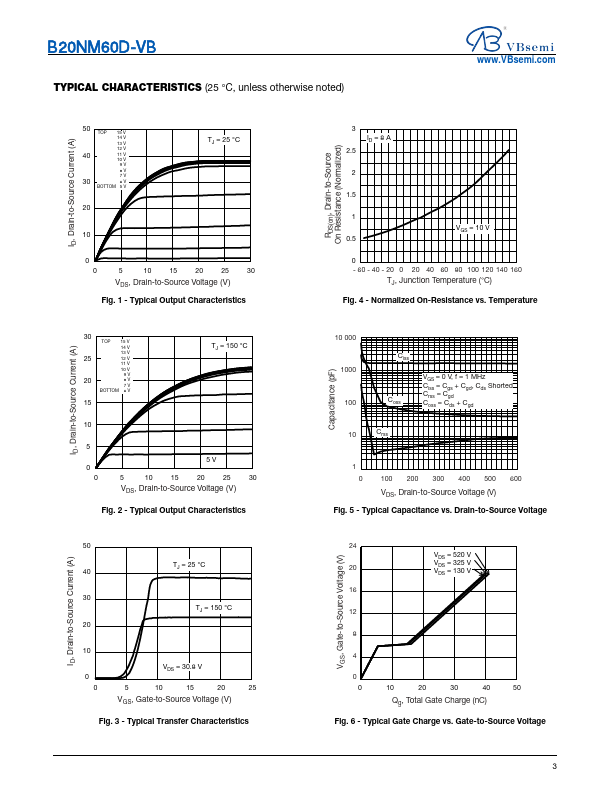

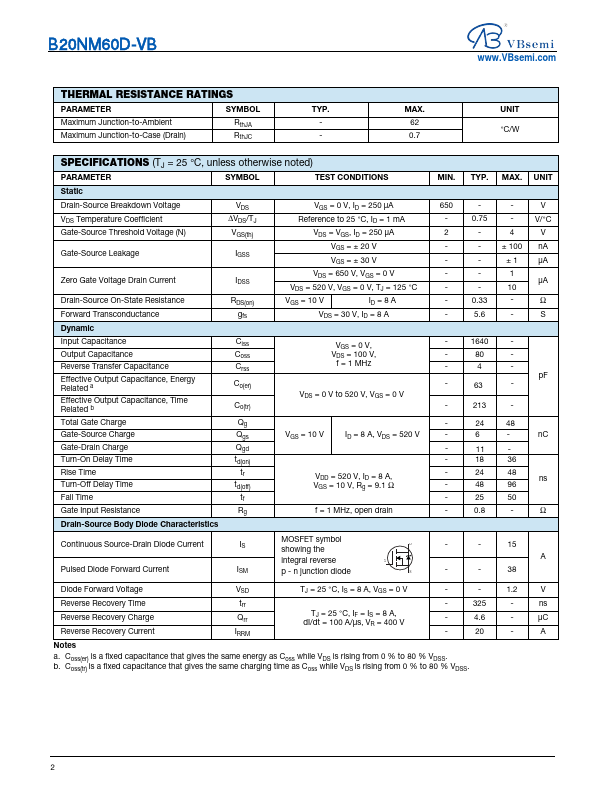

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
B20NM60D
Manufacturer
VBsemi
File Size
291.10 KB
Datasheet
B20NM60D-VBsemi.pdf
Description
N-Channel 650V Power MOSFET
