APM2103SGC-TRL - Dual P-Channel 20V MOSFET

VBsemi

📥 Download Datasheet

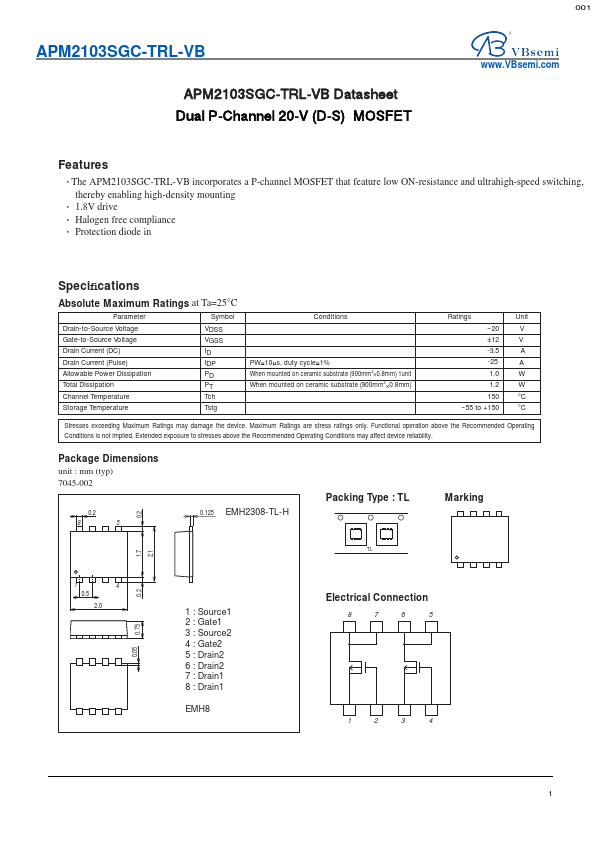

APM2103SGC-TRL Datasheet Preview — Preview of APM2103SGC-TRL PDF

datasheet Preview Page 2

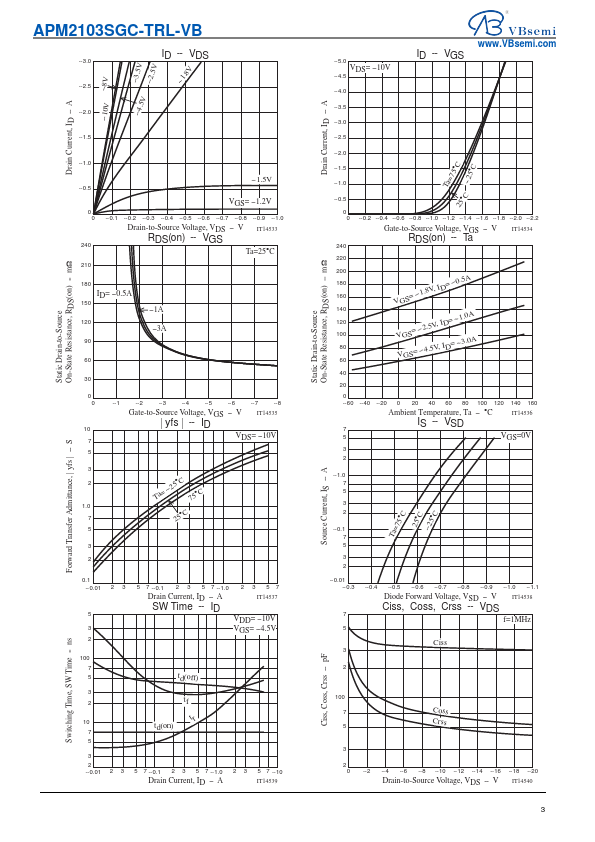

datasheet Preview Page 3

Datasheet Details

Part number	APM2103SGC-TRL
Manufacturer	VBsemi ↗
File Size	200.07 KB
Description	Dual P-Channel 20V MOSFET
Datasheet	APM2103SGC-TRL-VBsemi.pdf

APM2103SGC-TRL Product details

Features

The APM2103SGC-TRL-VB incorporates a P-channel MOSFET that feature low ON-resistance and ultrahigh-speed switching, thereby enabling high-density mounting.
1.8V drive.
Halogen free compliance.
Protection diode in Speciﬁcations Absolute Maximum Ratings at Ta=25°C Parameter Drain-to-Source Voltage Gate-to-Source Voltage Drain Current (DC) Drain Current (Pulse) Allowable Power Dissipation Total Dissipation Channel Temperature Storage Temperature Symbol VDSS.
