AO4812 Dual N-Channel 30V MOSFET

AO4812 Description

AO4812 Dual N-Channel 30-V (D-S) MOSFET www.VBsemi.tw PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 0.022 at VGS = 10 V 30 0.026 at VGS = 4.5 V ID (A) 6..

AO4812 Features

* Halogen-free According to IEC 61249-2-21 Definition
* TrenchFET® Power MOSFET
* 100 % UIS Tested
* 100 % Rg Tested

AO4812 Applications

* Set Top Box
* Low Current DC/DC D1 D2 G1 S1 N-Channel MOSFET G2 S2 N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol Limit Unit Drain-Source Voltage Gate-Source Voltage VDS 30 V VGS ± 20 TC = 25 °C 6.8a Continuous Drain

📥 Download Datasheet

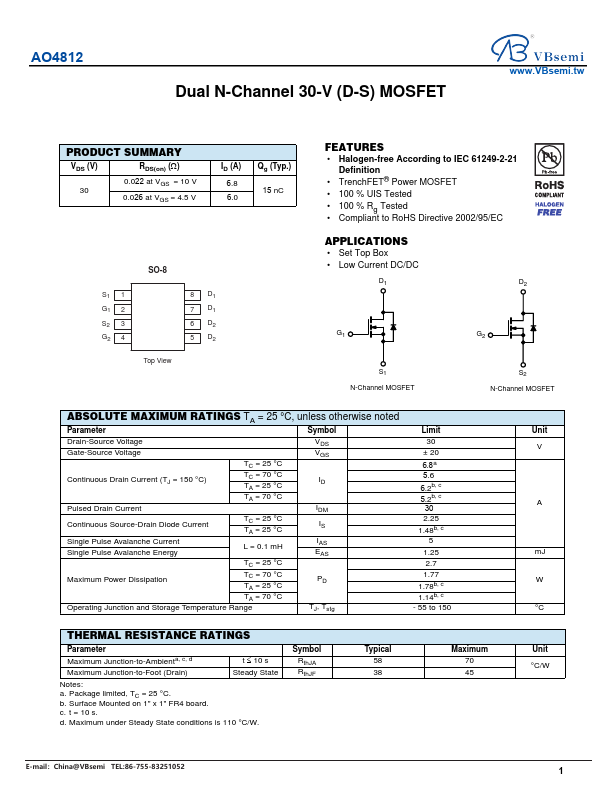

Preview of AO4812 PDF

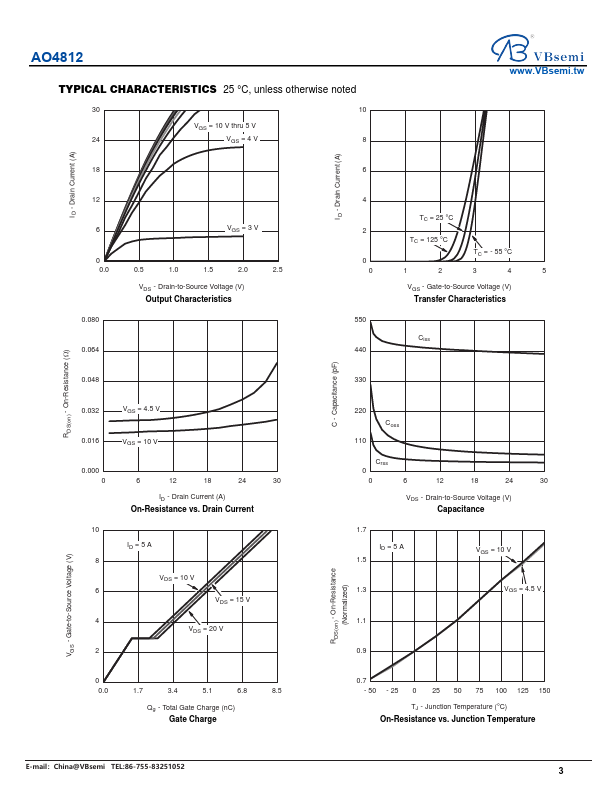

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AO4812
Manufacturer
VBsemi
File Size
824.37 KB
Datasheet
AO4812-VBsemi.pdf
Description
Dual N-Channel 30V MOSFET
