AM2370N-T1-PF N-Channel 100V MOSFET

AM2370N-T1-PF Description

AM2370N-T1-PF-VB AM2370N-T1-PF-VB Datasheet N-Channel 100 V (D-S) MOSFET MOSFET PRODUCT SUMMARY VDS (V) RDS(on) () ID (A)a 0.240 at VGS = 10 V .

AM2370N-T1-PF Features

* TrenchFET® Power MOSFET
* 100 % Rg Tested
* 100 % UIS Tested

AM2370N-T1-PF Applications

* DC/DC Converters
* Load Switch
* LED Backlighting in LCD TVs www. VBsemi. com ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS TC = 25 °C Continuous Drain Current (TJ = 150 °C) TC = 70 °

📥 Download Datasheet

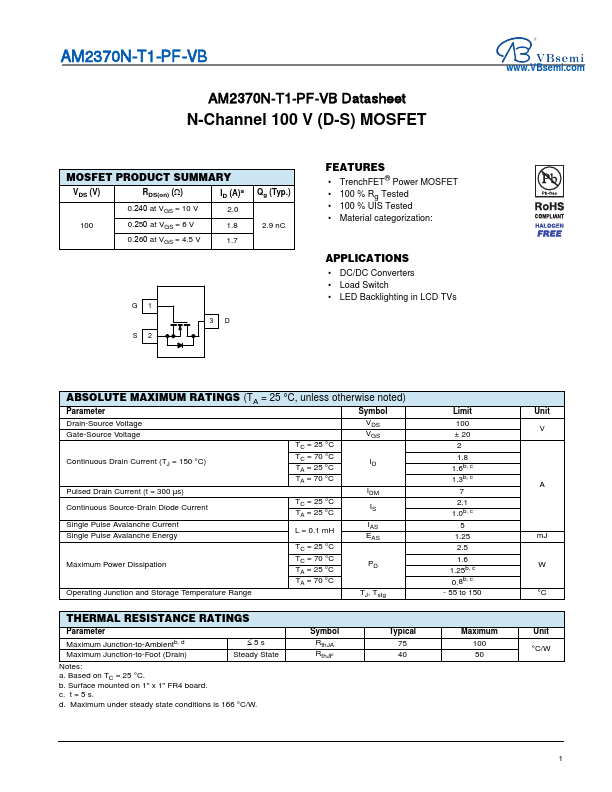

Preview of AM2370N-T1-PF PDF

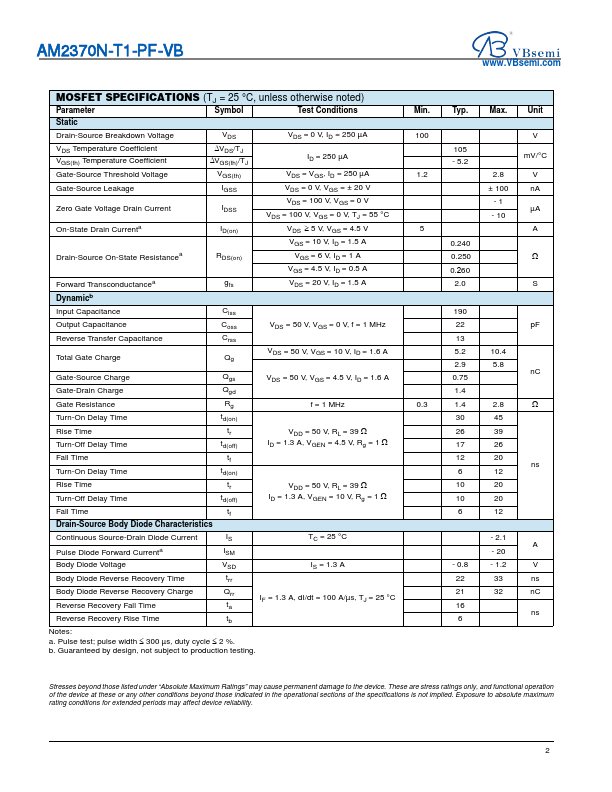

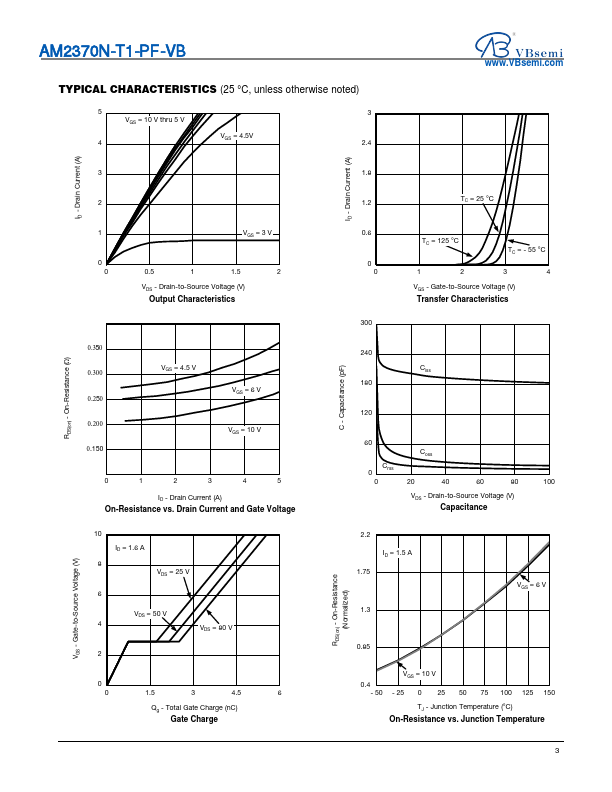

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AM2370N-T1-PF
Manufacturer
VBsemi
File Size
277.17 KB
Datasheet
AM2370N-T1-PF-VBsemi.pdf
Description
N-Channel 100V MOSFET
