9975GM Dual N-Channel 60V MOSFET

VBsemi

Description

9975GM-VB 9975GM-VB Datasheet Dual N-Channel 60-V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 0.012 at VGS = 10 V 60 0.015 a.

📥 Download Datasheet

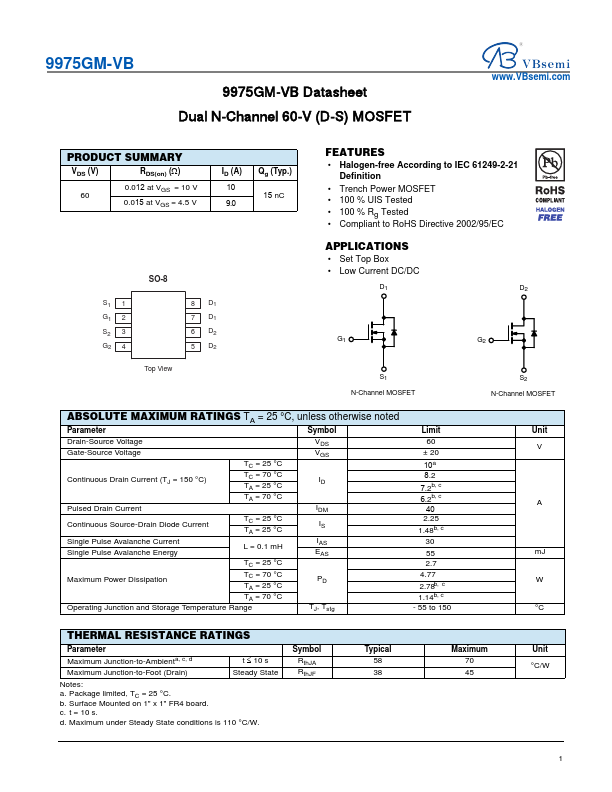

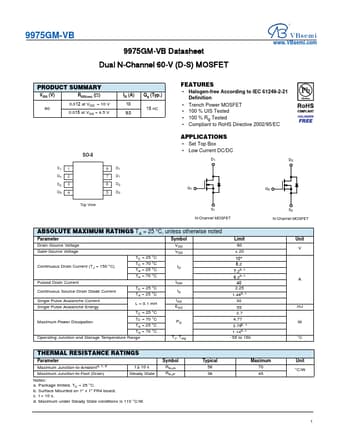

9975GM Datasheet Preview — Preview of 9975GM PDF

Datasheet Specifications

Part number: 9975GM
Manufacturer: VBsemi
File Size: 270.34 KB
Datasheet: 9975GM-VBsemi.pdf
Description: Dual N-Channel 60V MOSFET

Features

* Halogen-free According to IEC 61249-2-21 Definition
* Trench Power MOSFET
* 100 % UIS Tested
* 100 % Rg Tested

Applications

* Set Top Box
* Low Current DC/DC D1 G1 D2 G2 Top View S1 N-Channel MOSFET S2 N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol Limit Unit Drain-Source Voltage Gate-Source Voltage VDS 60 V VGS ± 20 TC = 25 °C 10a Continuou
