9416M N-Channel 30V MOSFET

VBsemi

9416M Description

9416M-VB 9416M-VB Datasheet N-Channel 30-V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 0.003 at VGS = 10 V 30 0.004 at VGS =.

9416M Features

* Halogen-free According to IEC 61249-2-21 Available

9416M Applications

* Synchronous Buck Low-Side - Notebook - Server - Workstation
* Synchronous Rectifier-POL S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol 10 s Steady State Unit Drain-Source Voltage Gate-Source Voltage VDS 30 V VGS ± 20 Co

📥 Download Datasheet

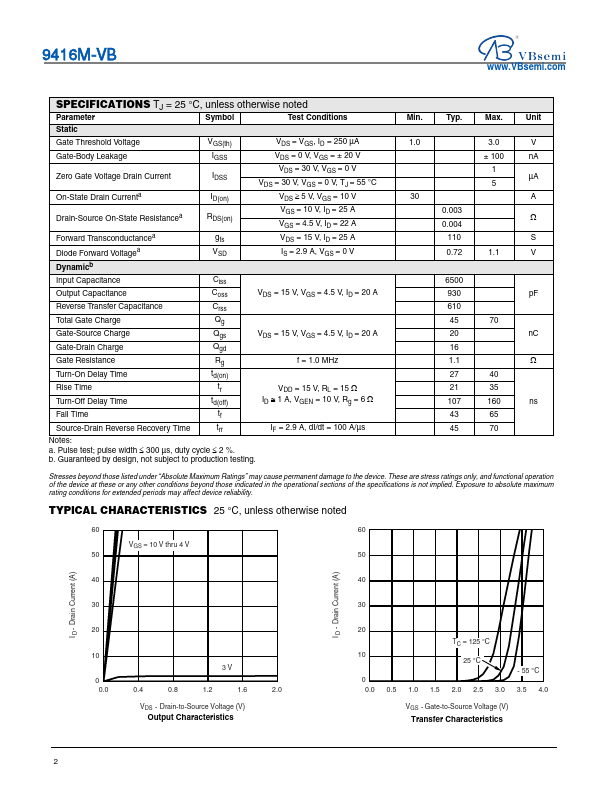

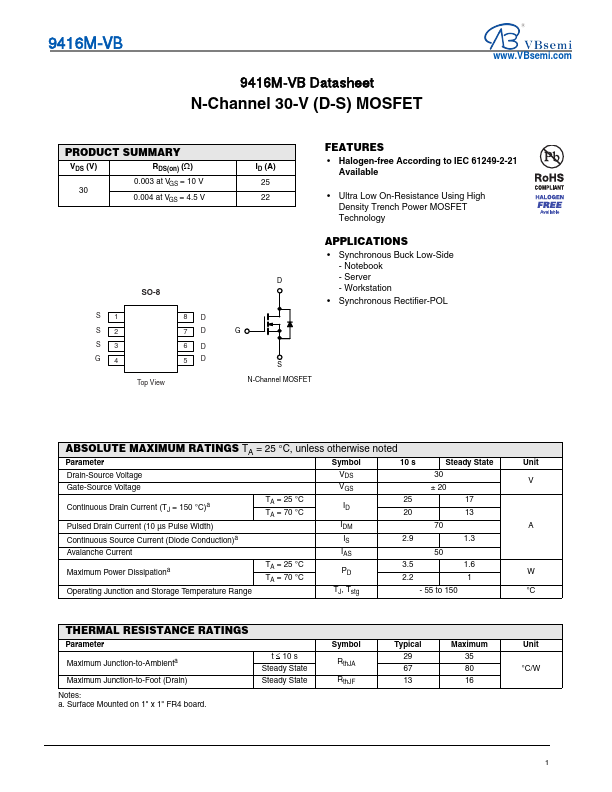

9416M Datasheet Preview — Preview of 9416M PDF

Datasheet Details

Part number: 9416M
Manufacturer: VBsemi
File Size: 209.29 KB
Datasheet: 9416M-VBsemi.pdf
Description: N-Channel 30V MOSFET
