4N04L04 N-Channel 40V MOSFET

4N04L04 Description

4N04L04-VB TO220 4N04L04-VB TO220 Datasheet N-Channel 40-V (D-S) MOSFET PRODUCT SUMMARY VDS RDS(on) VGS = 10 V ID Configuration 40 V 6 mΩ 110 .

4N04L04 Features

* Trench Power MOSFET

4N04L04 Applications

* Synchronous Rectification
* Power Supplies D www. VBsemi. com RoHS COMPLIANT G GDS Top View ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS TC = 25 °C Continuous Drain Current (TJ = 175 °C) TC

📥 Download Datasheet

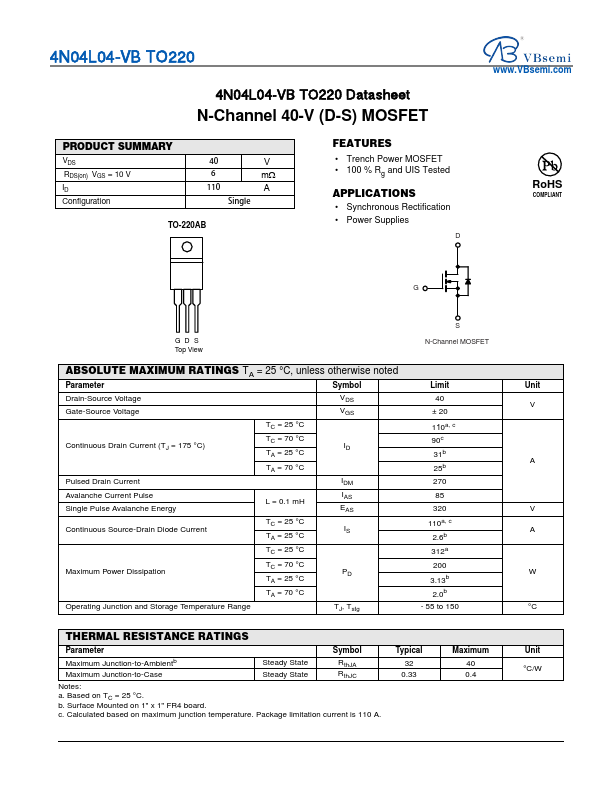

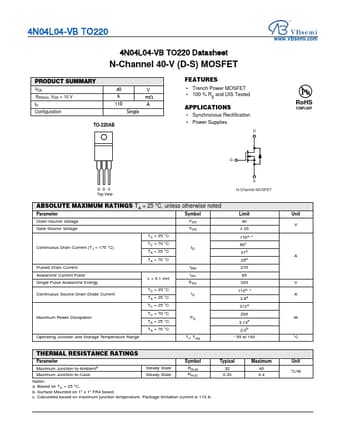

Preview of 4N04L04 PDF

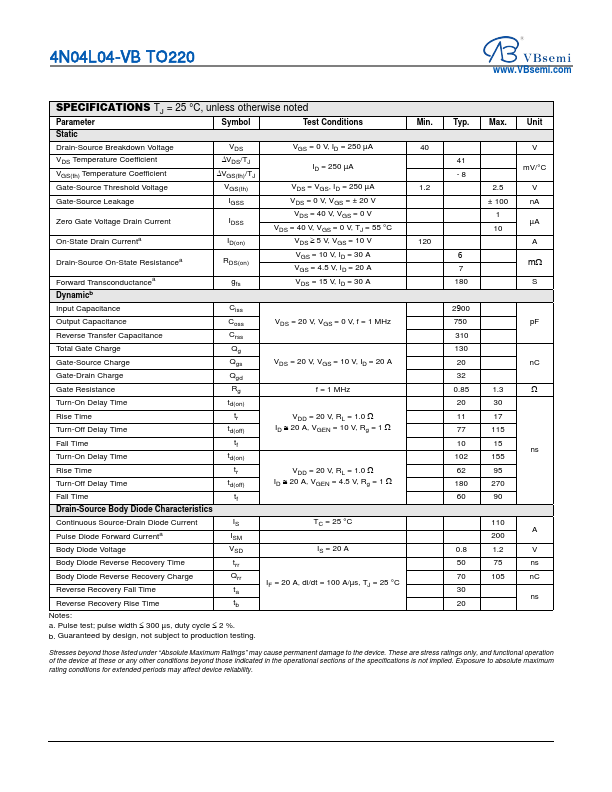

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
4N04L04
Manufacturer
VBsemi
File Size
354.83 KB
Datasheet
4N04L04-VBsemi.pdf
Description
N-Channel 40V MOSFET
