4511M - N- and P-Channel MOSFET

4511M Description

4511M-VB 4511M-VB Datasheet www.VBsemi.com N- and P-Channel 30 V (D-S) MOSFET PRODUCT SUMMARY VDS (V) RDS(on) (Ω) N-Channel 30 P-Channel - 30 .

4511M Features

* Halogen-free According to IEC 61249-2-21 Definition
* TrenchFET® Power MOSFET
* 100 % Rg and UIS Tested

4511M Applications

* Motor Drive
* Mobile Power Bank S1 1 G1 2 S2 3 G2 4 SO-8 8 D1 7 D1 6 D2 5 D2 D1 G1 S1 S2 G2 D2 ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) Parameter Symbol N-Channel P-Channel Drain-Source Voltage Gate-Source Voltage Continuous Drain Current (TJ = 150 °

📥 Download Datasheet

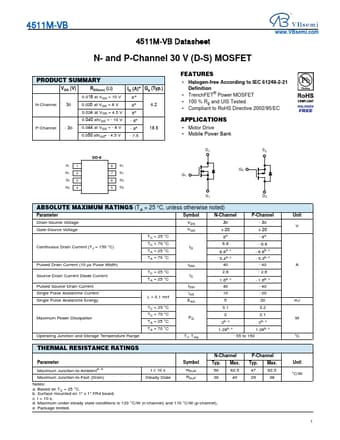

Preview of 4511M PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
4511M
Manufacturer
VBsemi
File Size
269.64 KB
Datasheet
4511M-VBsemi.pdf
Description
N- and P-Channel MOSFET
