2SK811 - N-Channel 100V MOSFET

VBsemi

The 2SK811 by VBsemi is a N-Channel 100V MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

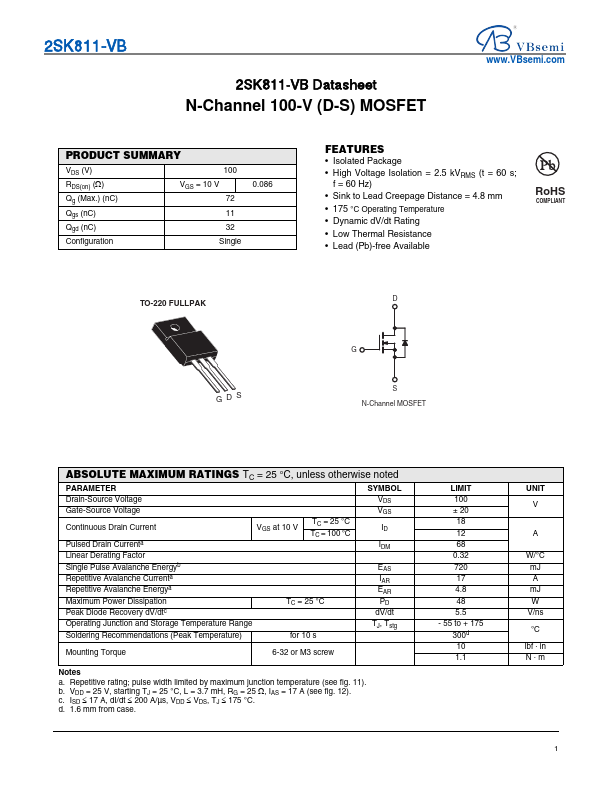

2SK811 N-Channel 100V MOSFET by VBsemi - Datasheet Preview — Official preview page of the 2SK811 N-Channel 100V MOSFET datasheet (VBsemi).

Datasheet Details

Part number	2SK811
Manufacturer	VBsemi
File Size	1.10 MB
Description	N-Channel 100V MOSFET
Datasheet	2SK811-VBsemi.pdf

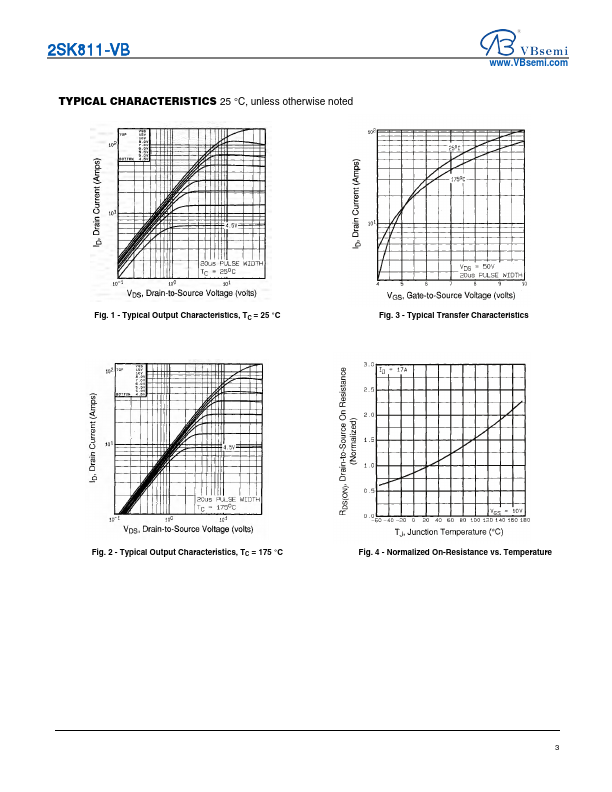

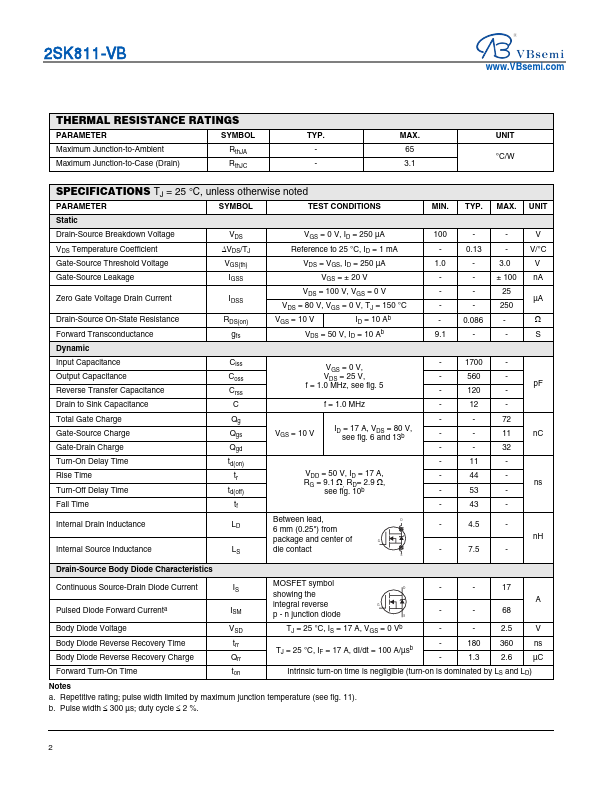

Additional preview pages of the 2SK811 datasheet.

2SK811 Product details

Features

Isolated Package.
High Voltage Isolation = 2.5 kVRMS (t = 60 s; f = 60 Hz).
Sink to Lead Creepage Distance = 4.8 mm.
175 °C Operating Temperature.
Dynamic dV/dt Rating.
Low Thermal Resistance.
Lead (Pb)-free Available RoHS.
