25N10G-TN3-R N-Channel 100V MOSFET

VBsemi

25N10G-TN3-R Description

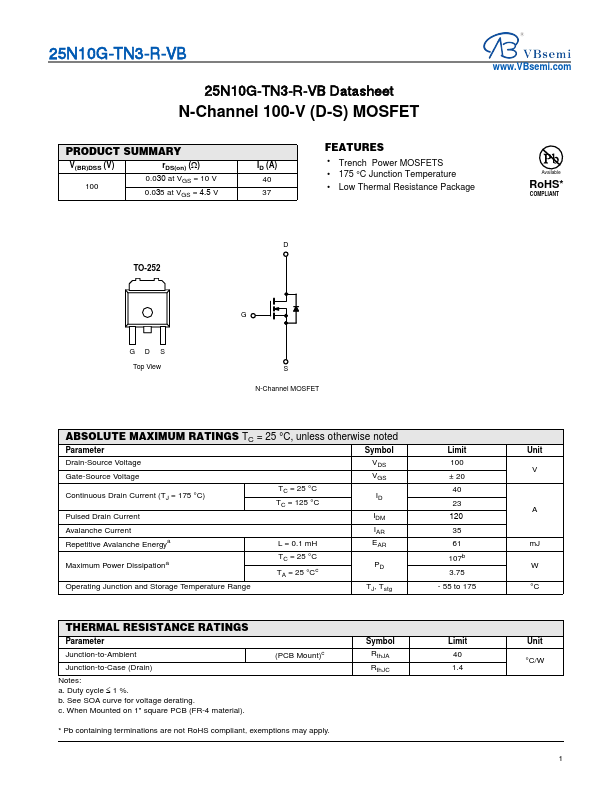

25N10G-TN3-R-VB 25N10G-TN3-R-VB Datasheet N-Channel 100-V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY V(BR)DSS (V) rDS(on) (Ω) 100 0.030 at VGS .

25N10G-TN3-R Features

* Trench Power MOSFETS
* 175 °C Junction Temperature
* Low Thermal Resistance Package Available RoHS
* COMPLIANT D TO-252 GDS Top View G S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TC = 25 °C, unless otherwise noted Parameter Symbol Drain-Source Voltage VDS Gate-

📥 Download Datasheet

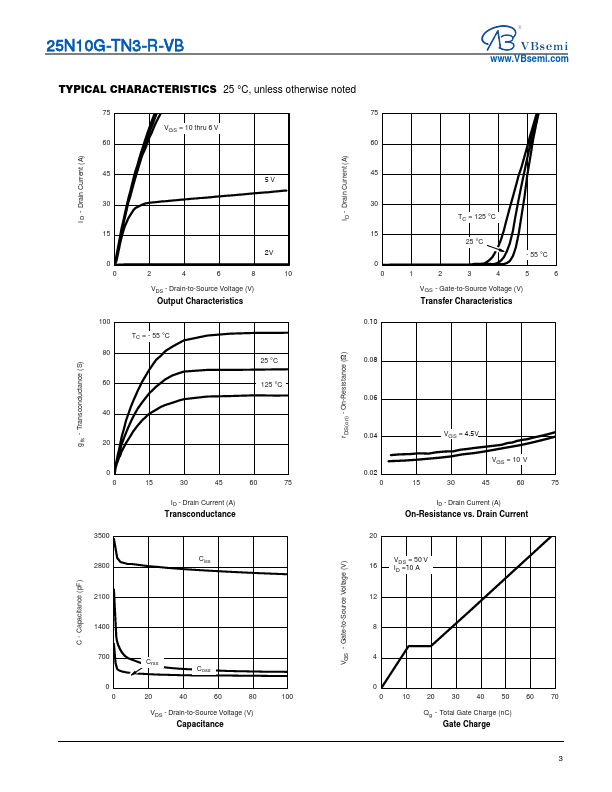

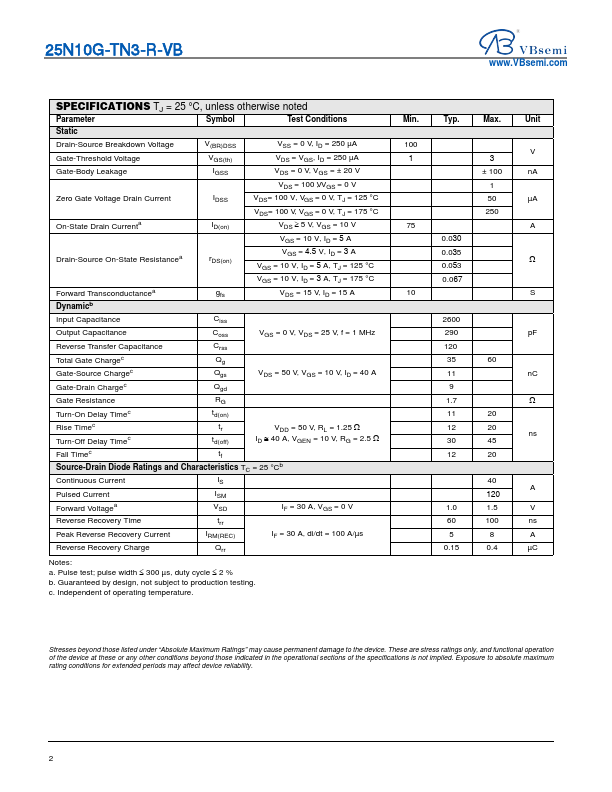

25N10G-TN3-R Datasheet Preview — Preview of 25N10G-TN3-R PDF

Datasheet Details

Part number: 25N10G-TN3-R
Manufacturer: VBsemi
File Size: 192.24 KB
Datasheet: 25N10G-TN3-R-VBsemi.pdf
Description: N-Channel 100V MOSFET
