UT20184S Datasheet - Universal Microelectronics

UT20184S MDSL Transformer

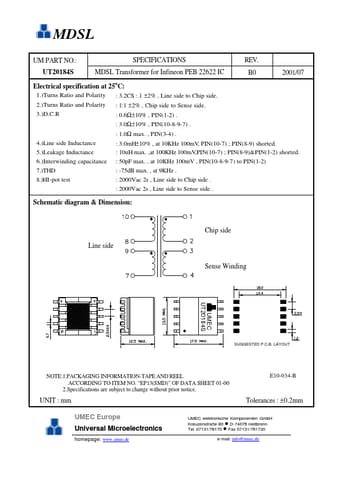

MDSL UM PART NO.: SPECIFICATIONS REV. UT20184S MDSL Transformer for Infineon PEB 22622 IC B0 2001/07 Electrical specification at 25oC: 1.)Turns Ratio and Polarity : 3.2CS : 1 ±2% , Line side to Chip side. 2.)Turns Ratio and Polarity : 1:1 ±2% , Chip side to Sense side. 3.)D.C.R : 0.6Ω±10% , PIN(1-2) . : 3.0Ω±10% , PIN(10-8-9-7) . : 1.0Ω max. , PIN(3-4) . 4.)Line side Inductance : 3.0mH±10% , at 10KHz 100mV, PIN(10-7) ; PIN(8-9) shorted. 5.)Leakage Inductance : 10uH max. ,at 100.

UT20184S Datasheet (46.24 KB)

UT20184S Datasheet Preview — Preview of UT20184S PDF

Datasheet Details

Part number:

UT20184S

Manufacturer:

Universal Microelectronics

File Size:

46.24 KB

Description:

Mdsl transformer.
