MID-14A22

The MID-14A22 is SIDE LOOK PACKAGE NPN PHOTOTRANSISTOR designed by Unity Opto Technology.

Product Overview

Unity Opto Technology

Part number	MID-14A22
Manufacturer	Unity Opto Technology
File Size	30.35 KB
Description	SIDE LOOK PACKAGE NPN PHOTOTRANSISTOR
Datasheet	MID-14A22-UnityOptoTechnology.pdf

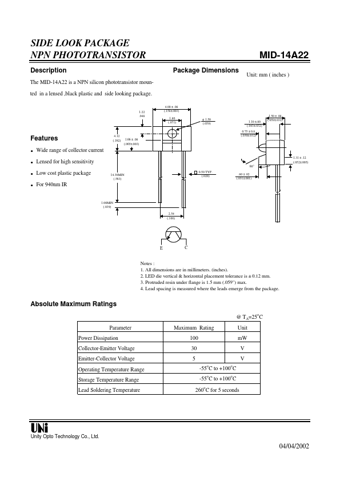

Additional preview pages of the MID-14A22 datasheet.

The MID-14A22 is a NPN silicon phototransistor mounted in a lensed ,black plastic and side looking package.

l l l l 4.12 (.162) 1.66 ± .08 (.065±.003) Wide range of collector current Lensed for high sensitivity 60° 1.31 ± .12 (.052±.005) 0.50 TYP. (.020) Low cost plastic package For 940nm IR 14.30MIN (.563) .80 ± .02 (.031±.001) 1.00MIN (.039) 2.54 (.100) E C Notes : 1. All dimensions are in millimeters. (inches). 2. LED die vertical & horizontal placement tolerance is ± 0.12 mm. 3. Protruded resin under flange is 1.5 mm (.059") max. 4. Lead spacing is measured where the leads emerge from th.
