UC3836, UC3835 - High Efficiency Regulator Controller

Unitrode

📥 Download Datasheet

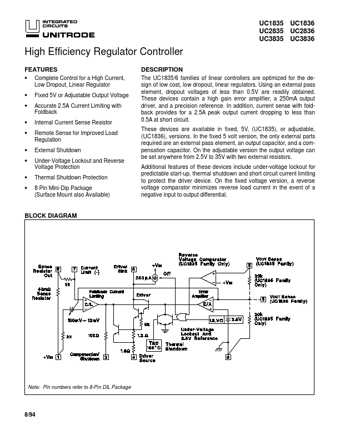

UC3836 Datasheet Preview — This datasheet PDF includes multiple part numbers: UC3836, UC3835. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	UC3836, UC3835
Manufacturer	Unitrode
File Size	438.03 KB
Description	High Efficiency Regulator Controller
Datasheet	UC3835-Unitrode.pdf
Note	This datasheet PDF includes multiple part numbers: UC3836, UC3835. Please refer to the document for exact specifications by model.

UC3836 Product details

Description

The UC1835/6 families of linear controllers are optimized for the design of low cost, low dropout, linear regulators.

Features

Complete Control for a High Current, Low Dropout, Linear Regulator.
Fixed 5V or Adjustable Output Voltage.
Accurate 2.5A Current Limiting with Foldback.
Internal Current Sense Resistor.
Remote Sense for Improved Load Regulation.
External Shutdown.
Under-Voltage Lockout and Reverse Voltage Protection.
Thermal Shutdown Protection.
8 Pin Mini-Dip Package (Surface Mount also Available).
