UC3637 DC Motor Controller

UC3637 Description

UC1637 UC2637 UC3637 Switched Mode Controller for DC Motor Drive .
The UC1637 is a pulse width modulator circuit intended to be used for a variety of PWM motor drive and amplifier applications requiring either uni-dir.

UC3637 Features

* Single or Dual Supply Operation ±2.5V to ±20V Input Supply Range ±5% Initial Oscillator Accuracy; ± 10% Over Temperature Pulse-by-Pulse Current Limiting Under-Voltage Lockout Shutdown Input with Temperature Compensated 2.5V Threshold Uncommitted PWM Comparators for Desi

UC3637 Applications

* requiring either uni-directional or bidirectional drive circuits. When used to replace conventional drivers, this circuit can increase efficiency and reduce component costs for many applications. All necessary circuitry is included to generate an analog error signal and modulate two bi-directional p

📥 Download Datasheet

Preview of UC3637 PDF

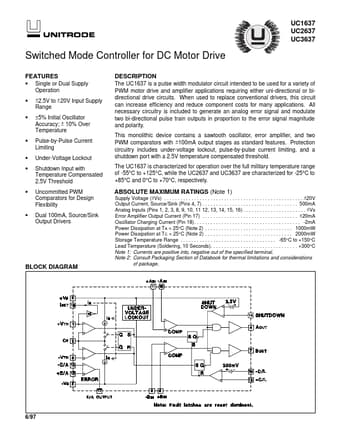

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
UC3637
Manufacturer
Unitrode
File Size
337.85 KB
Datasheet
UC3637_Unitrode.pdf
Description
DC Motor Controller
