UC2844 Current Mode PWM Controller

UC2844 Description

UC1842/3/4/5 UC2842/3/4/5 UC3842/3/4/5 Current Mode PWM Controller .
The UC1842/3/4/5 family of control ICs provides the necessary features to implement off-line or DC to DC fixed frequency current mode control schemes.

UC2844 Features

* Optimized For Off-line And DC To DC Converters Low Start Up Current (

UC2844 Applications

* The corresponding thresholds for the UC1843 and UC1845 are 8.4V and 7.6V. The UC1842 and UC1843 can operate to duty cycles approaching 100%. A range of zero to 50% is obtained by the UC1844 and UC1845 by the addition of an internal toggle flip flop which blanks the output off every other clock cycl

📥 Download Datasheet

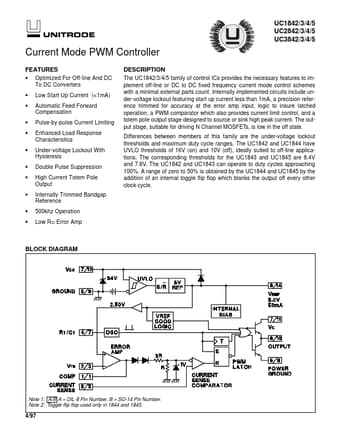

Preview of UC2844 PDF
