UF4SC120023B7S - 1200V SiC Cascode JFET

UnitedSiC

The UF4SC120023B7S by UnitedSiC is a 1200V SiC Cascode JFET. Below is the official datasheet preview.

📥 Download Datasheet

UF4SC120023B7S 1200V SiC Cascode JFET by UnitedSiC - Datasheet Preview — Official preview page of the **UF4SC120023B7S** 1200V SiC Cascode JFET datasheet (UnitedSiC).

Datasheet Details

Part number	UF4SC120023B7S
Manufacturer	UnitedSiC
File Size	1.42 MB
Description	1200V SiC Cascode JFET
Datasheet	UF4SC120023B7S-UnitedSiC.pdf

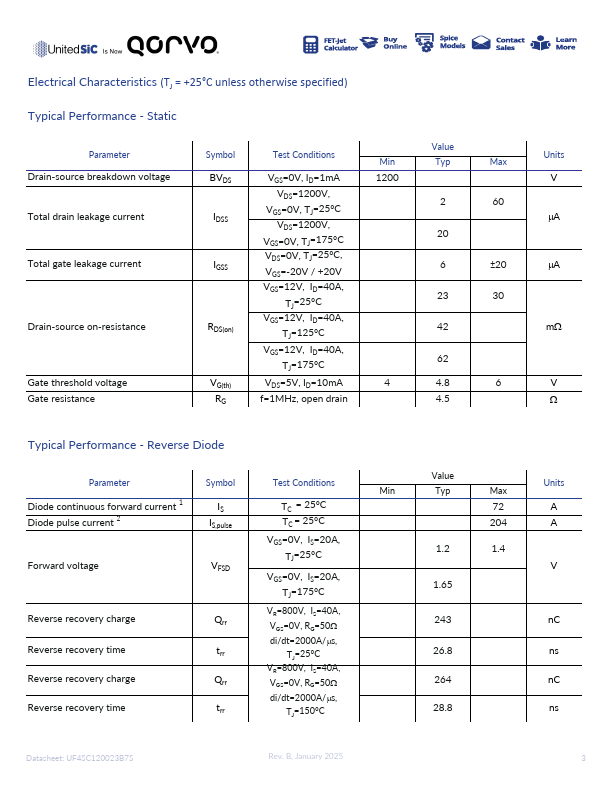

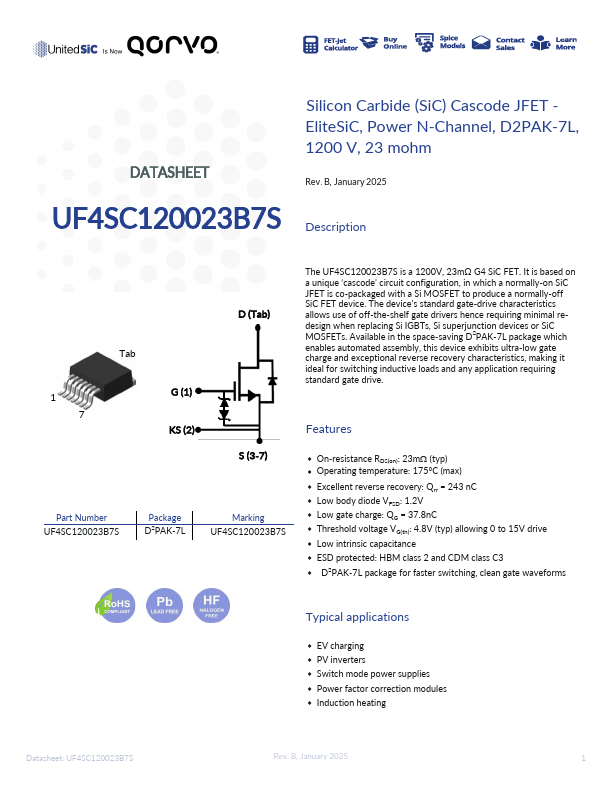

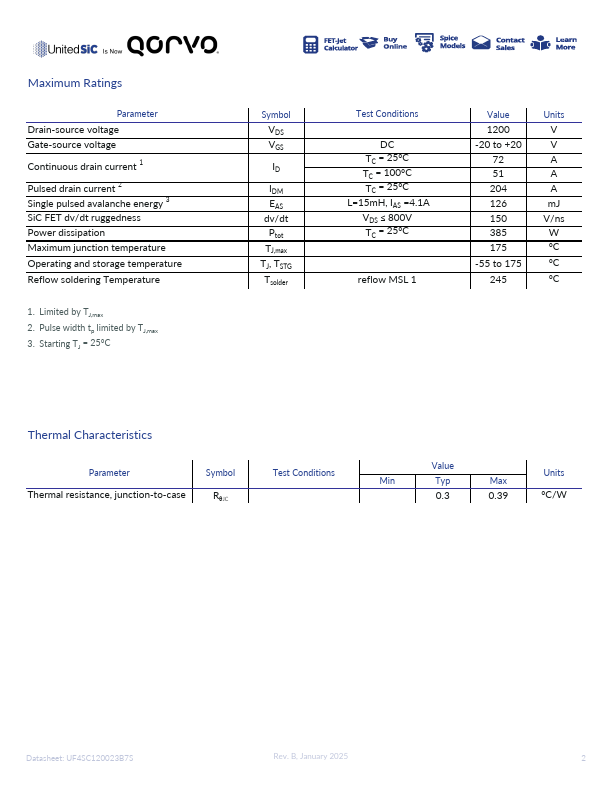

Additional preview pages of the UF4SC120023B7S datasheet.

UF4SC120023B7S Product details

Description

Tab 1 7 G (1) KS (2) D (Tab) S (3-7) Part Number UF4SC120023B7S Package D2PAK-7L Marking UF4SC120023B7S The UF4SC120023B7S is a 1200V, 23mΩ G4 SiC FET.It is based on a unique ‘cascode’ circuit configuration, in which a normally-on SiC JFET is co-packaged with a Si MOSFET to produce a normally-off SiC FET device.The device’s standard gate-drive characteristics allows use of off-the-shelf gate drivers hence requiring minimal redesign when replacing Si IGBTs, Si superjunction devices or S

Features

w On-resistance RDS(on): 23mW (typ) w Operating temperature: 175°C (max) w Excellent reverse recovery: Qrr = 243 nC w Low body diode VFSD: 1.2V w Low gate charge: QG = 37.8nC w Threshold voltage VG(th): 4.8V (typ) allowing 0 to 15V drive w Low intrinsic capacitance w ESD protected: HBM class 2 and CDM class C3 w D2PAK-7L package for faster switching, clean gate waveforms Typical.
