UF3SC065040B7S - 650V SiC Cascode JFET

Description

United Silicon Carbide's cascode products co-package its highperformance G3 SiC JFETs with a cascode optimized MOSFET to produce the only standard gate drive SiC device in the market today.

Features

  • w Typical on-resistance RDS(on),typ of 42mW w Maximum operating temperature of 175°C w Excellent reverse recovery w Low gate charge w Low intrinsic capacitance w ESD protected, HBM class 2 Part Number UF3SC065040B7S Package D2PAK-7L Marking UF3SC065040B7S Typical.

📥 Download Datasheet

Datasheet Details

Part number UF3SC065040B7S
Manufacturer UnitedSiC
File Size 449.48 KB
Description 650V SiC Cascode JFET
Datasheet download datasheet UF3SC065040B7S Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
UF3SC065007K4S SiC Cascode JFET onsemi
UF3SC065030B7S SiC Cascode JFET onsemi
UF3SC120009K4S 1200V SiC Cascode JFET onsemi
UF300 3.0 AMP HIGH EFFICIENCY RECTIFIERS Bytes
UF300 ULTRAFAST SWITCHING RECTIFIER Pan Jit International

Other Datasheets by UnitedSiC

Part Number Description
UF3SC065040D8S MOSFET
UF3SC065007K4S SiC FET
UF3SC065030D8S MOSFET
UF3SC120009K4S SiC FET
UF3SC120016K3S MOSFET

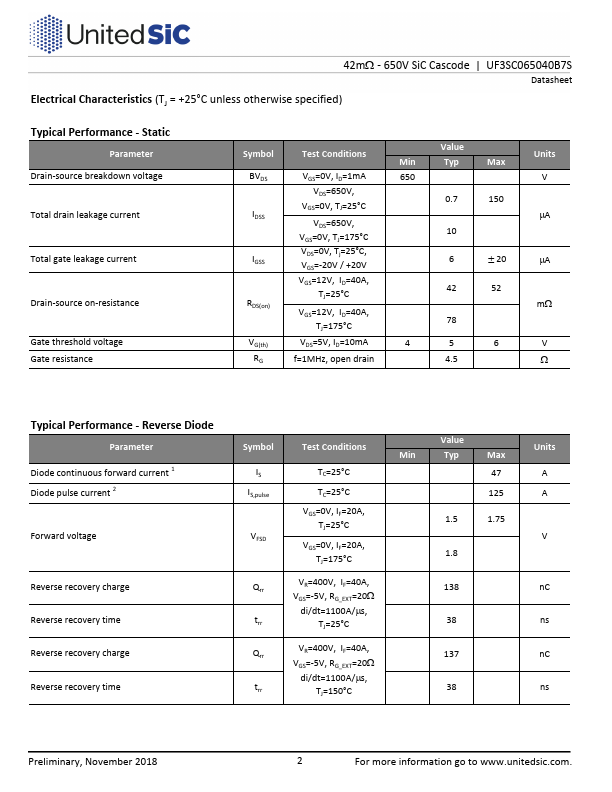

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text
Description United Silicon Carbide's cascode products co-package its highperformance G3 SiC JFETs with a cascode optimized MOSFET to produce the only standard gate drive SiC device in the market today. This series exhibits ultra-low gate charge, but also the best reverse recovery characteristics of any device of similar ratings. These devices are excellent for switching inductive loads, and any application requiring standard gate drive.
