CHR2294-99F - Single Side Band Mixer

United Monolithic Semiconductors

The CHR2294-99F by United Monolithic Semiconductors is a Single Side Band Mixer. Below is the official datasheet preview.

📥 Download Datasheet

CHR2294-99F Single Side Band Mixer by United Monolithic Semiconductors - Datasheet Preview — Official preview page of the **CHR2294-99F** Single Side Band Mixer datasheet (United Monolithic Semiconductors).

Datasheet Details

Part number	CHR2294-99F
Manufacturer	United Monolithic Semiconductors
File Size	436.66 KB
Description	Single Side Band Mixer
Datasheet	CHR2294-99F-UnitedMonolithicSemiconductors.pdf

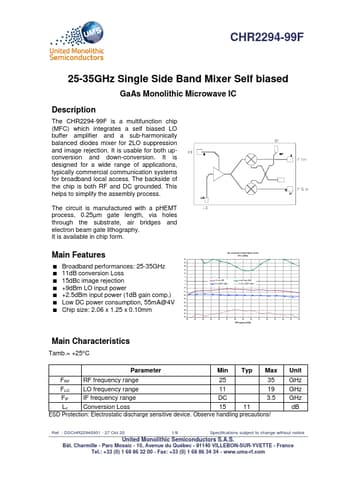

Additional preview pages of the CHR2294-99F datasheet.

CHR2294-99F Product details

Description

The CHR2294-99F is a multifunction chip (MFC) which integrates a self biased LO buffer amplifier and a sub-harmonically balanced diodes mixer for 2LO suppression and image rejection.

Features

 Broadband performances: 25-35GHz  11dB conversion Loss  15dBc image rejection  +9dBm LO input power  +2.5dBm input power (1dB gain comp. )  Low DC power consumption, 55mA@4V  Chip size: 2.06 x 1.25 x 0.10mm Up-conversion Supradyne mode IF=1.2GHz 30 25 20 15 10 5 0 CL sup (dB) Imag Supp (dBc) -5 P LO@RF (dBm) P 2xLO @RF (dBm) -10 -15 -20 -25 -30 -35 -40 -45 -50 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 RF frequency (GHz) Main Characteristics Tamb. =.
