CHM1294-99F - Self biased Single Side Band Mixer

United Monolithic Semiconductors

The CHM1294-99F by United Monolithic Semiconductors is a Self biased Single Side Band Mixer. Below is the official datasheet preview.

📥 Download Datasheet

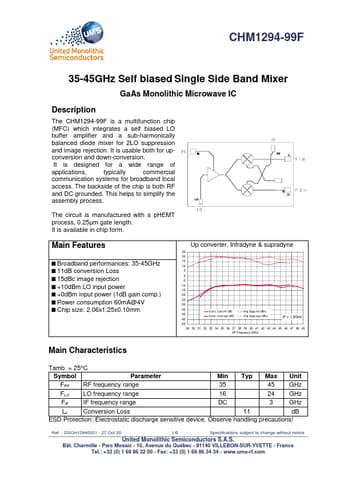

CHM1294-99F Self biased Single Side Band Mixer by United Monolithic Semiconductors - Datasheet Preview — Official preview page of the **CHM1294-99F** Self biased Single Side Band Mixer datasheet (United Monolithic Semiconductors).

Datasheet Details

Part number	CHM1294-99F
Manufacturer	United Monolithic Semiconductors
File Size	182.80 KB
Description	Self biased Single Side Band Mixer
Datasheet	CHM1294-99F-UnitedMonolithicSemiconductors.pdf
Additional preview pages of the CHM1294-99F datasheet.

CHM1294-99F Product details

Description

The CHM1294-99F is a multifunction chip (MFC) which integrates a self biased LO buffer amplifier and a sub-harmonically balanced diode mixer for 2LO suppression and image rejection.It is usable both for up- conversion and down-conversion.It is designed for a wide range of applications, typically commercial communication systems for broadband local access.The backside of the chip is both RF and DC grounded.This helps to simplify the assembly process.The circuit is manufactured

Features

Broadband performances: 35-45GHz.
11dB conversion Loss.
15dBc image rejection.
+10dBm LO input power.
+0dBm input power (1dB gain comp. ).
Power consumption 60mA@4V.
Chip size: 2.06x1.25x0.10mm Up converter, Infradyne & supradyne 25 20 15 10 5 0 -5 -10 -15 -20 -25 -30 -35 Conv. Loss inf (dB) Img Supp inf (dBc) -40 -45 Conv. Loss sup (dB) Img Supp sup (dBc) IF = 1.2GHz -50 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 RF F.
