CHA6551-99F - 17-24GHz Power Amplifier

Description

The CHA6551-99F is a three stage monolithic GaAs high power circuit producing 1.6 Watt output power.

It is highly linear, with possible gain control RFIN and integrates a power detector.

ESD protections are included.

Features

  • Broadband performances: 17-24GHz.
  • 32dBm saturated power.
  • 39dBm OIP3.
  • 22dB Gain.
  • DC bias: Vd = 4.0 Volt @ Id = 880mA.
  • Chip size 3.60x3.46x0.07mm Output Power & PAE vs frequency Main Electrical Characteristics Tamb. = +25°C Symbol Parameter Freq Frequency range Gain Linear Gain Psat Saturated output power OIP3 Output IP3 Min Typ Max Unit 17 24 GHz 22 dB 32 dBm 39 dBm Ref. : DSCHA65510301 - 27 Oct 20 1/18 Specifications subject to change without no.

📥 Download Datasheet

Datasheet Details

Part number CHA6551-99F
Manufacturer United Monolithic Semiconductors
File Size 0.99 MB
Description 17-24GHz Power Amplifier
Datasheet download datasheet CHA6551-99F Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
CHA611 low noise high accuracy linear Hall effect-based sensor Cosemitech
CHA-20NF (CHA-20xx) Coaxial Attenuators Component General
CHA-20NM (CHA-20xx) Coaxial Attenuators Component General
CHA-20NMF (CHA-20xx) Coaxial Attenuators Component General
CHA-20SF (CHA-20xx) Coaxial Attenuators Component General

Other Datasheets by United Monolithic Semiconductors

Part Number Description
CHA6550-98F Power Amplifier
CHA6550-QXG 17.0 - 23.6GHz Power Amplifier
CHA6552-QJG GaAs Monolithic Microwave
CHA6558-99F four stages GaAs high power amplifier
CHA6517 6 - 18 GHz High Power Amplifier

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

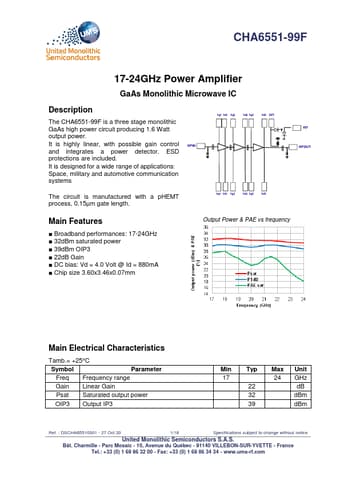

CHA6551-99F 17-24GHz Power Amplifier GaAs Monolithic Microwave IC Description The CHA6551-99F is a three stage monolithic GaAs high power circuit producing 1.6 Watt output power. It is highly linear, with possible gain control RFIN and integrates a power detector. ESD protections are included. It is designed for a wide range of applications: Space, military and automotive communication systems The circuit is manufactured with a pHEMT process, 0.15µm gate length. Vg1 Vd1 Vg2 Vd2 Vg3 Vd3 DET Vg1 Vd1 Vg2 Vd2 Vg3 Vd3 REF RFOUT Main Features ■ Broadband performances: 17-24GHz ■ 32dBm saturated power ■ 39dBm OIP3 ■ 22dB Gain ■ DC bias: Vd = 4.0 Volt @ Id = 880mA ■ Chip size 3.60x3.46x0.07mm Output Power & PAE vs frequency Main Electrical Characteristics Tamb.
