CHA4253AQQG - 17- 24GHz Medium Power Amplifier

Product Overview

United Monolithic Semiconductors

📥 Download Datasheet

CHA4253AQQG 17- 24GHz Medium Power Amplifier by United Monolithic Semiconductors - Datasheet Preview — Datasheet preview – CHA4253AQQG

Datasheet Details

Part number	CHA4253AQQG
Manufacturer	United Monolithic Semiconductors
File Size	544.94 KB
Description	17- 24GHz Medium Power Amplifier
Datasheet	CHA4253AQQG Datasheet

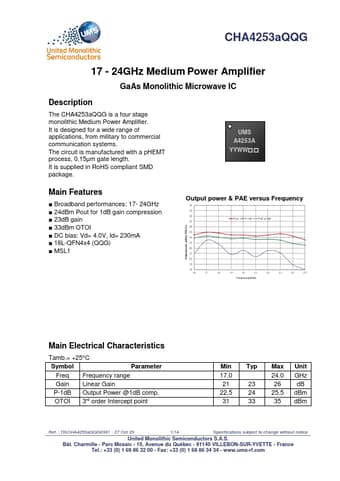

Additional preview pages of the CHA4253AQQG datasheet.

Product details

Description

The CHA4253aQQG is a four stage monolithic Medium Power Amplifier.

Features

Broadband performances: 17- 24GHz.
24dBm Pout for 1dB gain compression.
23dB gain.
33dBm OTOI.
DC bias: Vd= 4.0V, Id= 230mA.
16L-QFN4x4 (QQG).
MSL1 Output power & PAE versus Frequency Main Electrical Characteristics Tamb. = +25°C Symbol Parameter Freq Frequency range Gain Linear Gain P-1dB Output Power @1dB comp. OTOI 3rd order Intercept point Min Typ Max Unit 17.0 24.0 GHz 21 23 26 dB 22.5 24 25.5 dBm 31 33 35 dBm Ref. : DSCHA4253aQQG0301 -.
