CHA4102-QEG - S band Digital VGA

United Monolithic Semiconductors

📥 Download Datasheet

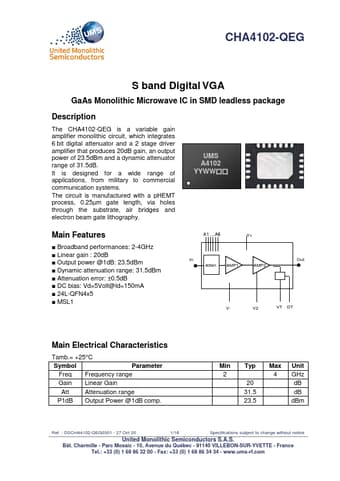

CHA4102-QEG Datasheet Preview — Preview of CHA4102-QEG PDF

Datasheet Details

Part number	CHA4102-QEG
Manufacturer	United Monolithic Semiconductors
File Size	785.60 KB
Description	S band Digital VGA
Datasheet	CHA4102-QEG-UnitedMonolithicSemiconductors.pdf

CHA4102-QEG Product details

Description

The CHA4102-QEG is a variable gain amplifier monolithic circuit, which integrates 6 bit digital attenuator and a 2 stage driver amplifier that produces 20dB gain, an output power of 23.5dBm and a dynamic attenuator range of 31.5dB.

Features

Broadband performances: 2-4GHz.
Linear gain : 20dB.
Output power @1dB: 23.5dBm.
Dynamic attenuation range: 31.5dBm.
Attenuation error: ±0.5dB.
DC bias: Vd=5Volt@Id=150mA.
24L-QFN4x5.
MSL1 A1 …A6 V+ In Out Atten AMP1 AMP2 V- V2 VT DT Main Electrical Characteristics Tamb. = +25°C Symbol Parameter Freq Frequency range Gain Linear Gain Att Attenuation range P1dB Output Power @1dB comp. Min Typ Max Unit 2 4 GHz 20 dB 31.5 dB 23.5 dBm.
