CHA2069-FAA - 16-32GHz Low Noise Amplifier

Description

The CHA2069-FAA is a three-stage self-biased wide band monolithic low noise amplifier.

The circuit is manufactured with a standard pHEMT process: 0.25µm gate length, via holes through the substrate, air bridges and electron beam gate lithography.

Features

  • Broadband performance 16-32GHz.
  • 2.5dB typical Noise Figure.
  • 20dBm 3rd order intercept point.
  • 22dB gain.
  • Low DC power consumption.
  • 6x6mm² metal ceramic hermetic package Linear Gain 30 25 20 15 10 5 0 10 +25 C -40 C +85 C 15 20 25 30 Frequency (GHz) 35 40 Main Electrical Characteristics Tamb. = +25°C Symbol Parameter Min Typ Max Unit Fop Operating frequency range 16 32 GHz NF Noise figure 2.5 dB G Small signal Gain 22 dB ESD Protections: Electrosta.

📥 Download Datasheet

Datasheet Details

Part number CHA2069-FAA
Manufacturer United Monolithic Semiconductors
File Size 327.30 KB
Description 16-32GHz Low Noise Amplifier
Datasheet download datasheet CHA2069-FAA Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
CHA-20NF (CHA-20xx) Coaxial Attenuators Component General
CHA-20NM (CHA-20xx) Coaxial Attenuators Component General
CHA-20NMF (CHA-20xx) Coaxial Attenuators Component General
CHA-20SF (CHA-20xx) Coaxial Attenuators Component General
CHA-20SM (CHA-20xx) Coaxial Attenuators Component General

Other Datasheets by United Monolithic Semiconductors

Part Number Description
CHA2069-FAB Low Noise Amplifier
CHA2069-99F 18-31GHz Low Noise Amplifier
CHA2069-QDG 18-30GHz Low Noise Amplifier
CHA2069 18-31GHz Low Noise Amplifier
CHA2069RAF 18-31GHz Low Noise Amplifier

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

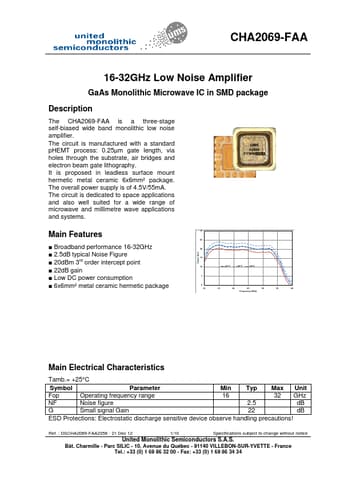

CHA2069-FAA 16-32GHz Low Noise Amplifier GaAs Monolithic Microwave IC in SMD package Description The CHA2069-FAA is a three-stage self-biased wide band monolithic low noise amplifier. The circuit is manufactured with a standard pHEMT process: 0.25µm gate length, via holes through the substrate, air bridges and electron beam gate lithography. It is proposed in leadless surface mount hermetic metal ceramic 6x6mm² package. The overall power supply is of 4.5V/55mA. The circuit is dedicated to space applications and also well suited for a wide range of microwave and millimetre wave applications and systems. UMS A2069 YYWW Main Features ■ Broadband performance 16-32GHz ■ 2.
