UTCUR133A - Low Dropout Linear Voltage Regulator

Description

The UTC UR133/A is a 300/500mA fixed output voltage low dropout linear regulator.

Wide range of available output voltage fits most of applications.

Built-in output current-limiting most thermal-limiting provide maximal protection against any fault conditions.

Features

  • Guaranteed 300/500mA output current.
  • Input voltage range up to 12V.
  • Extremely tight load regulation.
  • Fast transient response.
  • Current-limiting and Thermal-limiting.
  • Three-terminal adjustable or fixed 1.5V, 1.8V,2.2V, 2.5V, 2.7V , 2.8V , 2.9V ,3.0V, 3.3V , 3.5V , 3.7V , 4.7V , 5.0V.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
UTCUR0033 LINEAR INTEGRATED CIRCUIT UTC
UTCUA8868 LINEAR INTEGRATED CIRCUIT UTC
UTCULN2803 EIGHT DARLINGTON ARRAYS UTC
UTC-1005 Thin Film Cascadable Amplifier Teledyne
UTC-1044 Thin Film Cascadable AMplifier Agilent Technologies

Other Datasheets by Unisonic Technologies

Part Number Description
UTCUR133 Low Dropout Linear Voltage Regulator
UTCUR132 LINEAR INTEGRATED CIRCUIT
UTCUR3325 LINEAR INTEGRATED CIRCUIT
UTCU584 (UTCU584 - UTCU587) LOW DROPOUT POSITIVE REGULATORS ADJUSTABLE AND FIXED
UTCU585 (UTCU584 - UTCU587) LOW DROPOUT POSITIVE REGULATORS ADJUSTABLE AND FIXED

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

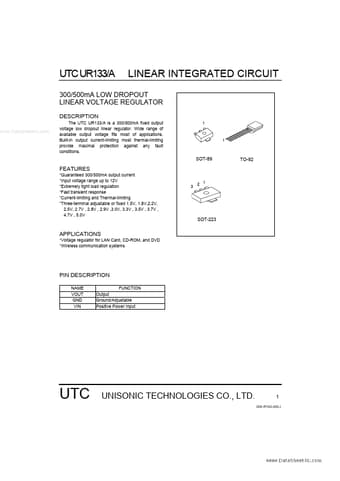

UTCUR133/A LINEAR INTEGRATED CIRCUIT www.DataSheet4U.com 300/500mA LOW DROPOUT LINEAR VOLTAGE REGULATOR DESCRIPTION The UTC UR133/A is a 300/500mA fixed output voltage low dropout linear regulator. Wide range of available output voltage fits most of applications. Built-in output current-limiting most thermal-limiting provide maximal protection against any fault conditions. FEATURES *Guaranteed 300/500mA output current *Input voltage range up to 12V *Extremely tight load regulation *Fast transient response *Current-limiting and Thermal-limiting *Three-terminal adjustable or fixed 1.5V, 1.8V,2.2V, 2.5V, 2.7V , 2.8V , 2.9V ,3.0V, 3.3V , 3.5V , 3.7V , 4.7V , 5.
