UTCMC34063A - DC TO DC CONVERTER CONTROLLER

Description

The UTC MC34063A is a monolithic regulator subsystem, intended for use as DC to DC converter.

This device contains a temperature compensated band gap reference, a duty-cycle control oscillator, driver and high current output switch.

Features

  • Operation from 3.0V to 40V.
  • Short circuit current limiting.
  • Low standby current.
  • Output switch current of 1.5A without external transistors.
  • Frequency of operation from 100Hz to 100kHz.
  • Step-up, step-down or inverting switch regulators. DIP-8 PIN.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
UTC-1005 Thin Film Cascadable Amplifier Teledyne
UTC-1044 Thin Film Cascadable AMplifier Agilent Technologies
UTC-111 Thin-Film Cascadable Amplifier Teledyne
UTC-2012 Thin-Film Cascadable Amplifier Teledyne Cougar
UTC-2321 Thin-Film Cascadable Amplifier Teledyne

Other Datasheets by Unisonic Technologies

Part Number Description
UTCMC34063 DC TO DC CONVERTER CONTROLLER
UTCMC34018 VOICE SWITCHED SPEAKER-PHONE CIRCUIT
UTCMC34072 HIGH SLEW RATE/ WIDE BANDWIDTH/ SINGLE SUPPLY OPERATIONAL AMPLIFIERS
UTCMC34119 LOW POWER AUDIO AMPLIFIER
UTCMC3361BP LOW VOLTAGE/POWER NARROW BAND FM IF

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

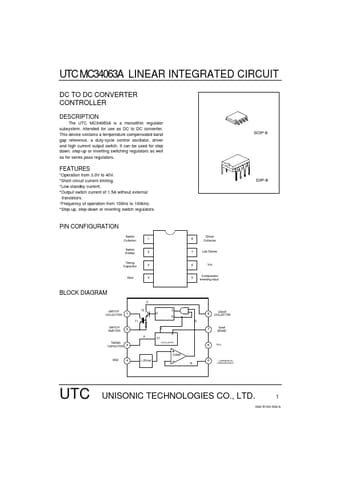

UTC MC34063A LINEAR INTEGRATED CIRCUIT DC TO DC CONVERTER CONTROLLER DESCRIPTION The UTC MC34063A is a monolithic regulator subsystem, intended for use as DC to DC converter. This device contains a temperature compensated band gap reference, a duty-cycle control oscillator, driver and high current output switch. It can be used for step down, step-up or inverting switching regulators as well as for series pass regulators. SOP-8 FEATURES *Operation from 3.0V to 40V. *Short circuit current limiting. *Low standby current. *Output switch current of 1.5A without external transistors. *Frequency of operation from 100Hz to 100kHz. *Step-up, step-down or inverting switch regulators.
