UTC812 - MICROPROCESSOR RESET

Description

The UTC UTC812 is a microprocessor (µP) reset circuit designed to monitor the power supplies in µP and digital systems.

The UTC UTC812 has push-pull output and active-low RESET output.

Features

  • Supply Current: 10µA.
  • Precision Monitoring of +5V, +3.3V, +3.0V Powered Circuits.
  • With the Two Configurations In The Following: Push-Pull RESET Output.
  • Power-On Reset Pulse Width: 140ms (MIN. ).
  • Outputs Guaranteed To Be In The Correct Logic State for VCC Down to 1V.
  • Required No External Components.
  • Power Supply Transient Immunity.

📥 Download Datasheet

📁 Similar Datasheet

Other Datasheets by Unisonic Technologies
  • UTC801 - 3/4 STRINGS Xmas LIGHT CONTROLLER
  • UTC802 - 3/4 STRINGS Xmas LIGHT CONTROLLER
  • UTC8050S - NPN Epitaxial Silicon Transistor
  • UTC1470 - LINEAR INTEGRATED CIRCUIT
  • UTC2N2955 - SILICON PNP TRANSISTOR
  • UTC2N3904 - NPN EPITAXIAL SILICON TRANSISTOR
  • UTC2SA1015 - PNP EPITAXIAL SILICON TRANSISTOR
  • UTC2SA1020 - PNP EPITAXIAL SILICON TRANSISTOR

Full PDF Text Transcription

Click to expand full text

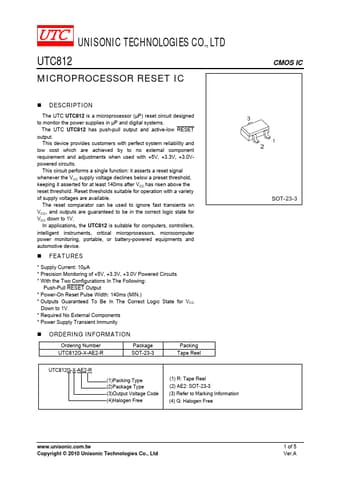

UNISONIC TECHNOLOGIES CO., LTD UTC812 MICROPROCESSOR RESET IC „ DESCRIPTION The UTC UTC812 is a microprocessor (µP) reset circuit designed to monitor the power supplies in µP and digital systems. The UTC UTC812 has push-pull output and active-low RESET output. This device provides customers with perfect system reliability and low cost which are achieved by to no external component requirement and adjustments when used with +5V, +3.3V, +3.0Vpowered circuits. This circuit performs a single function: it asserts a reset signal whenever the VCC supply voltage declines below a preset threshold, keeping it asserted for at least 140ms after VCC has risen above the reset threshold. Reset thresholds suitable for operation with a variety of supply voltages are available.
